Batteries Not Included
- 500 lb. weight capacity
- Black, flat-free, non-marking tires
- Standard front basket
- Ultra heavy-duty drivetrain with 110 amp controller
- Maximum speed up to 5.25 mph

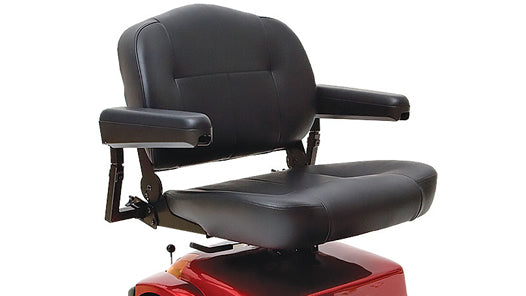

- Redesigned seat for improved comfort

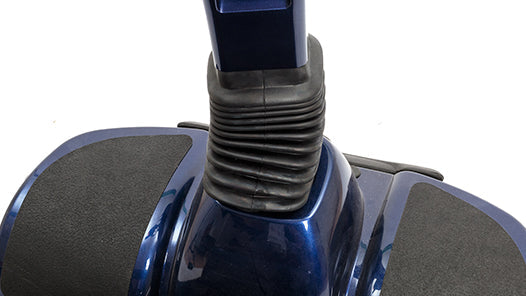

- Easily adjustable tiller
- Durable and stylish rear polyurethane bumper
- Easily accessible tie down points (for transport of unoccupied scooter)
- User-friendly console
Product Specifications PDF
Specifications:
| Model | Maxima 3Whl | Maxima 4Whl |
| Model Number | SC901 | SC941 |
| Front Tires | 3" x 10" Solid | 3" x 10" Solid |
| Rear Tires | 4" x 10" Solid | 4" x 10" Solid |
| Maximum Speed* | Up to 5.25 MPH | Up to 5.25 MPH |
| Ground Clearance | 4.25" at mid frame | 3.25" at mid frame |
| Turning Radius** | 50.38" | 54" |
| Overall Length** | 46" | 46.9" |
| Overall Width of Base** | 25.5" | 25.5" |
| Seat-to-Ground Height Range | 22.5"-24.5" | 22.5"-24.5" |
| Seat Type | Deluxe Contoured Medium-back (22"x18") | Deluxe Contoured Medium-back (22"x18") |
| Weight** | 171 lbs. | 176 lbs. |
| Seat-to-Deck Height Range | 16"-18" | 16"-18" |
| Battery Weight | 38 lbs. ea. (NF-22 or 55AH), 24.5 lbs. ea. (U-1) | 38 lbs. ea. (NF-22 or 55AH) |
| Battery Requirements | (2) NF-22, (2) U-1 (power elevating seat) | (2) NF-22 |
| Maximum Range Per Charge* | Up to 18 miles, U-1 (power elevating seat) up to 9.6 miles | Up to 16 miles |
| Battery Charger | Off-board, 5A | Off-board, 5A |
| Suspension | Rear | Front & Rear |
| Maximum Weight Capacity | 500 lbs. | 500 lbs. |
| Standard Body Colors | Candy Apple Red, Viper Blue | Candy Apple Red, Viper Blue |
| Weight of Heaviest Piece** | 76 lbs. (Rear section) | 76 lbs. (Rear section) |
| Medicare Code Coverage | K0802 - Group 1 Very Heavy Duty | K0808 - Group 2 Very Heavy Duty Must be billed to Medicare as either a beneficiary requested upgrade with a properly executed ABN, or as an upgrade at no additional charge to the beneficiary. |
| Warranty | Lifetime limited on frame; 2-Year limited on Electronics; 2-Year limited on Drivetrain |
Lifetime limited on frame; 2-Year limited on Electronics; 2-Year limited on Drivetrain |
