Description

The CP440 Lift is a fixed and portable lifting aid used to transfer clients. The lift makes it possible to move mobility-impaired individuals with minimal strain or risk to the caregiver while providing complete safety, dignity and comfort for the client.

The CP440 lift should be used in conjunction with a suitable track system, such as a Mackworth Portable Gantry System or fixed ceiling track and a moving and handling sling. The sling should be selected to suit the application and client requirements. It attaches to the lift by means of the carry bar by its straps to hold the individual while the lift or transfer takes place.

Benefits

  • Portable or fixed
  • Can be fitted and moved between any suitable ceiling track or overhead gantry with a compatible trolley set
  • Capable of transferring patients of up to 440lb (200kg)
  • Unobtrusive, doesn’t take up floor space or cause trip hazards
  • Move patients with minimal effort whilst maintaining their comfort and dignity
  • Can be fitted and removed using QRS reacher

Features

  • Compact lightweight aluminum chassis, total unit weight 9.9lb (4.5kg) without a carry bar
  • Up, down and emergency lowering controls on both hand controller and unit
  • Power switch on rear of unit
  • Auto power off after approximately 30 seconds of non-use to save battery
  • 50-60 lifts per charge
  • Integrated wall dock and charger
  • QRS reacher included
  • QRS carry bar included
  • Led indicators for: Battery and error status, Sleep mode, Emergency lower,  Temperature warnings, Lifted weight is over capacity, Slack tape error, Charger fault

Specifications

Max Safe Working Load 440 lbs
Hoist Case Non-Flammable ABS Plastic
Dimensions 8.19" L x 6.97" W x 5.87" H
Weight (Hoist Only) 9.9 lbs
Hoisting Range Up to 82.69"
Lifting Speed Unloaded: 1.38"/s
220 lbs Loaded: 0.98"/s
Charger Input 100 - 240V
Batteries 2 x 12V - 3.3Ah NiMH

The CP440 Lift is a fixed and portable lifting aid used to transfer clients. The lift makes it possible to move mobility-impaired individuals with minimal strain or risk to the caregiver while providing complete safety, dignity and comfort for the client.

The CP440 lift should be used in conjunction with a suitable track system, such as a Mackworth Portable Gantry System or fixed ceiling track and a moving and handling sling. The sling should be selected to suit the application and client requirements. It attaches to the lift by means of the carry bar by its straps to hold the individual while the lift or transfer takes place.

Benefits

  • Portable or fixed
  • Can be fitted and moved between any suitable ceiling track or overhead gantry with a compatible trolley set
  • Capable of transferring patients of up to 440lb (200kg)
  • Unobtrusive, doesn’t take up floor space or cause trip hazards
  • Move patients with minimal effort whilst maintaining their comfort and dignity
  • Can be fitted and removed using QRS reacher

Features

  • Compact lightweight aluminum chassis, total unit weight 9.9lb (4.5kg) without a carry bar
  • Up, down and emergency lowering controls on both hand controller and unit
  • Power switch on rear of unit
  • Auto power off after approximately 30 seconds of non-use to save battery
  • 50-60 lifts per charge
  • Integrated wall dock and charger
  • QRS reacher included
  • QRS carry bar included
  • Led indicators for: Battery and error status, Sleep mode, Emergency lower,  Temperature warnings, Lifted weight is over capacity, Slack tape error, Charger fault

Specifications

Max Safe Working Load 440 lbs
Hoist Case Non-Flammable ABS Plastic
Dimensions 8.19" L x 6.97" W x 5.87" H
Weight (Hoist Only) 9.9 lbs
Hoisting Range Up to 82.69"
Lifting Speed Unloaded: 1.38"/s
220 lbs Loaded: 0.98"/s
Charger Input 100 - 240V
Batteries 2 x 12V - 3.3Ah NiMH

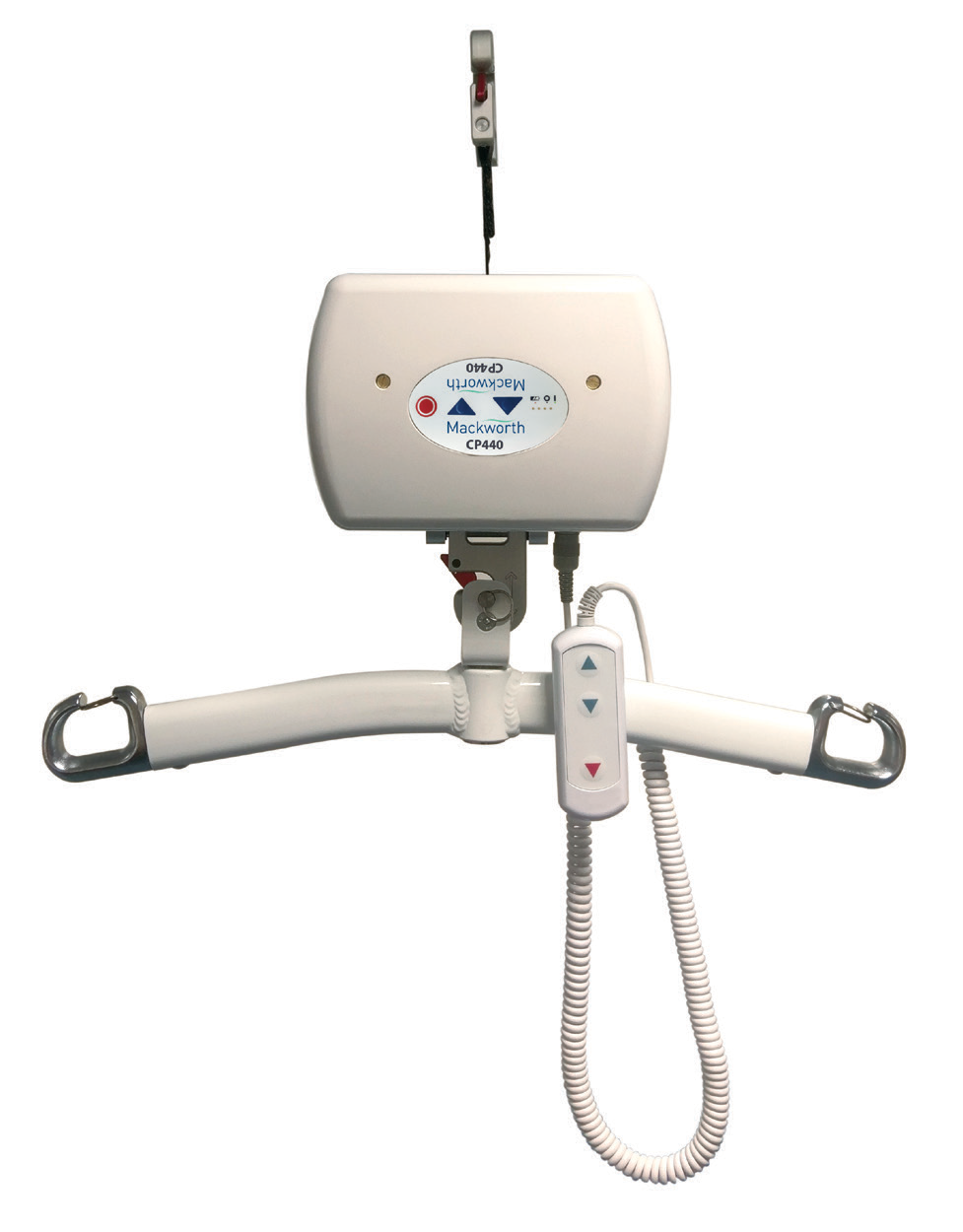

CP440 Portable Lift
