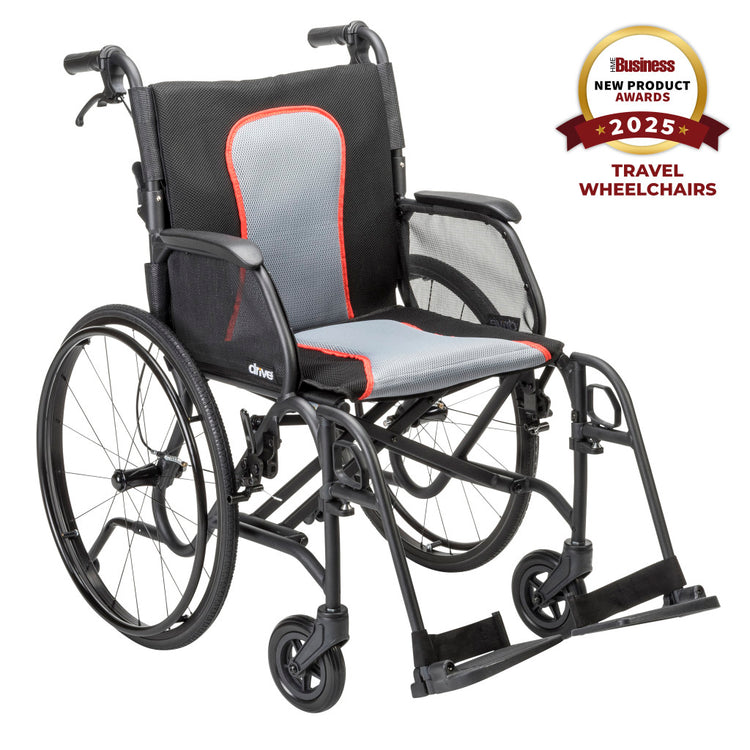

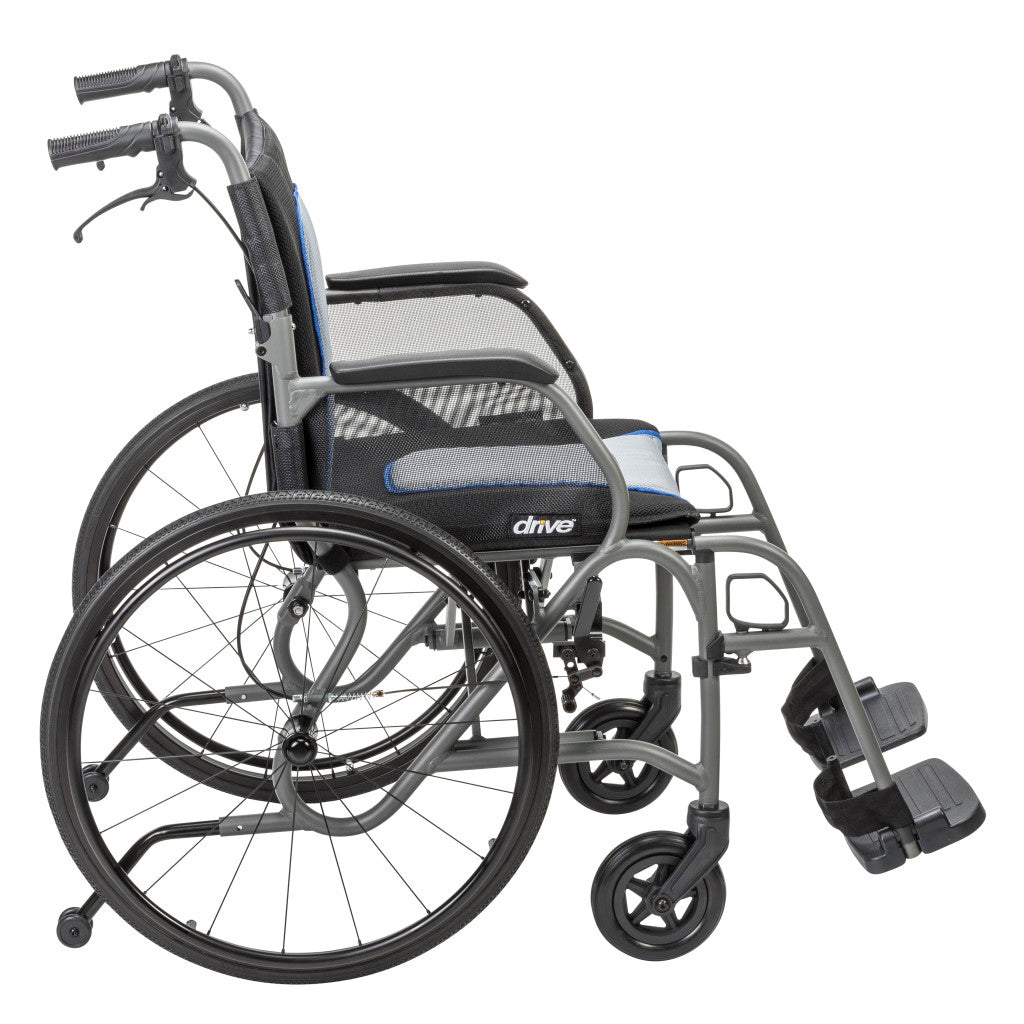

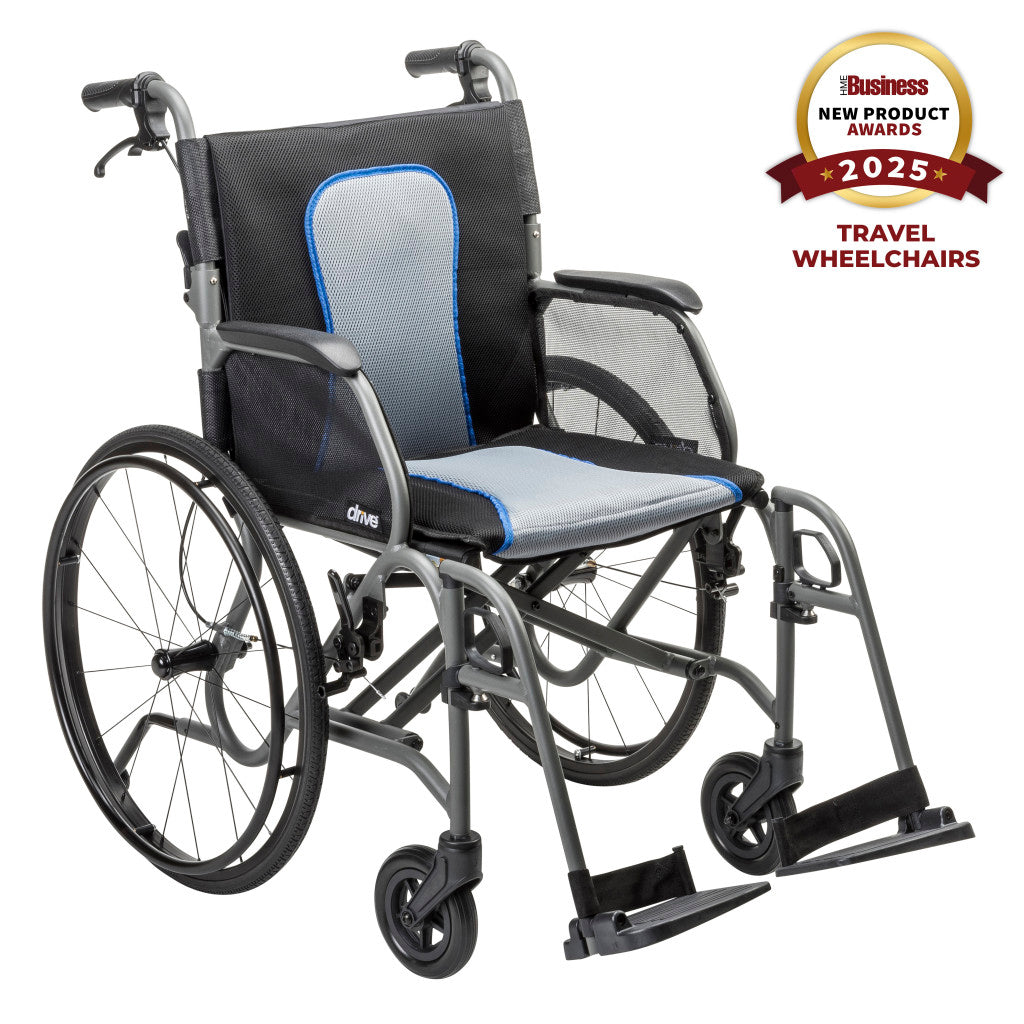

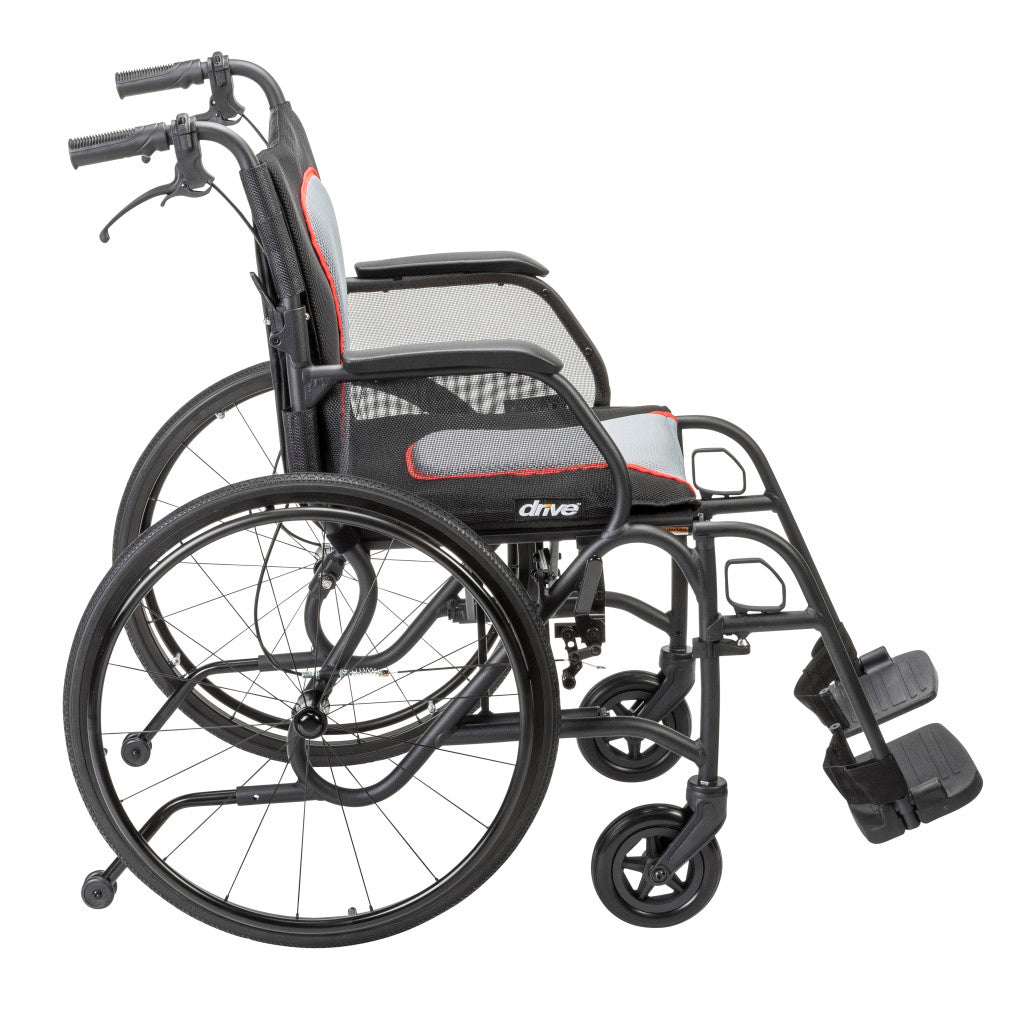

The AeroFly Ultra-Lite Wheelchair is a folding manual wheelchair built on a die-cast magnesium alloy frame. It is designed for users and caregivers who need a self-propelling chair that can be lifted into a car, carried over a step, or stored in a cupboard between outings without a second pair of hands.

The rear wheels come off at the push of a quick-release button and the backrest folds flat, reducing the chair to a compact package. Carry handles are integrated into the seat so there is a defined lifting point once the wheels are removed. The chair is fitted with both attendant brakes on the push handles and wheel locks on the rear wheels, so a caregiver can slow the chair on a gradient and the chair can be parked securely for transfers. Solid rubber treaded tires never need inflation.

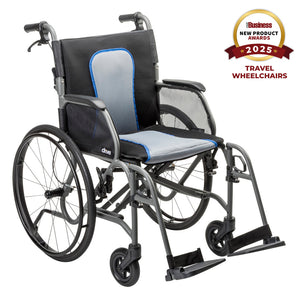

Two seat widths and two frame finishes are available. Padded seat and back overlay cushions, European-style swing-away footrests with heel loops, and wheeled rear anti-tippers are fitted as standard.

Features

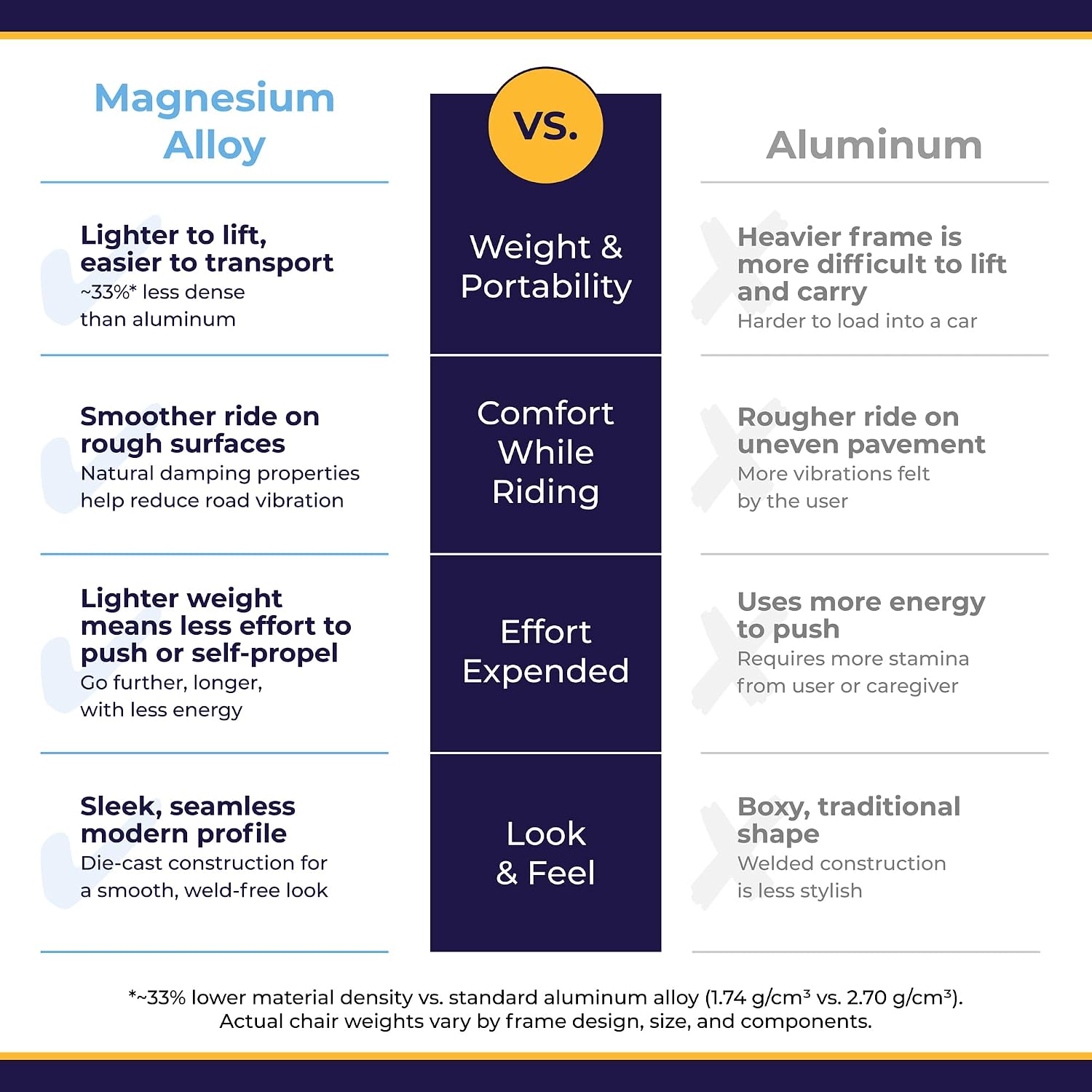

• Die-cast magnesium alloy frame with a smooth, weld-free profile
• Quick-release rear axles that release the rear wheels without tools

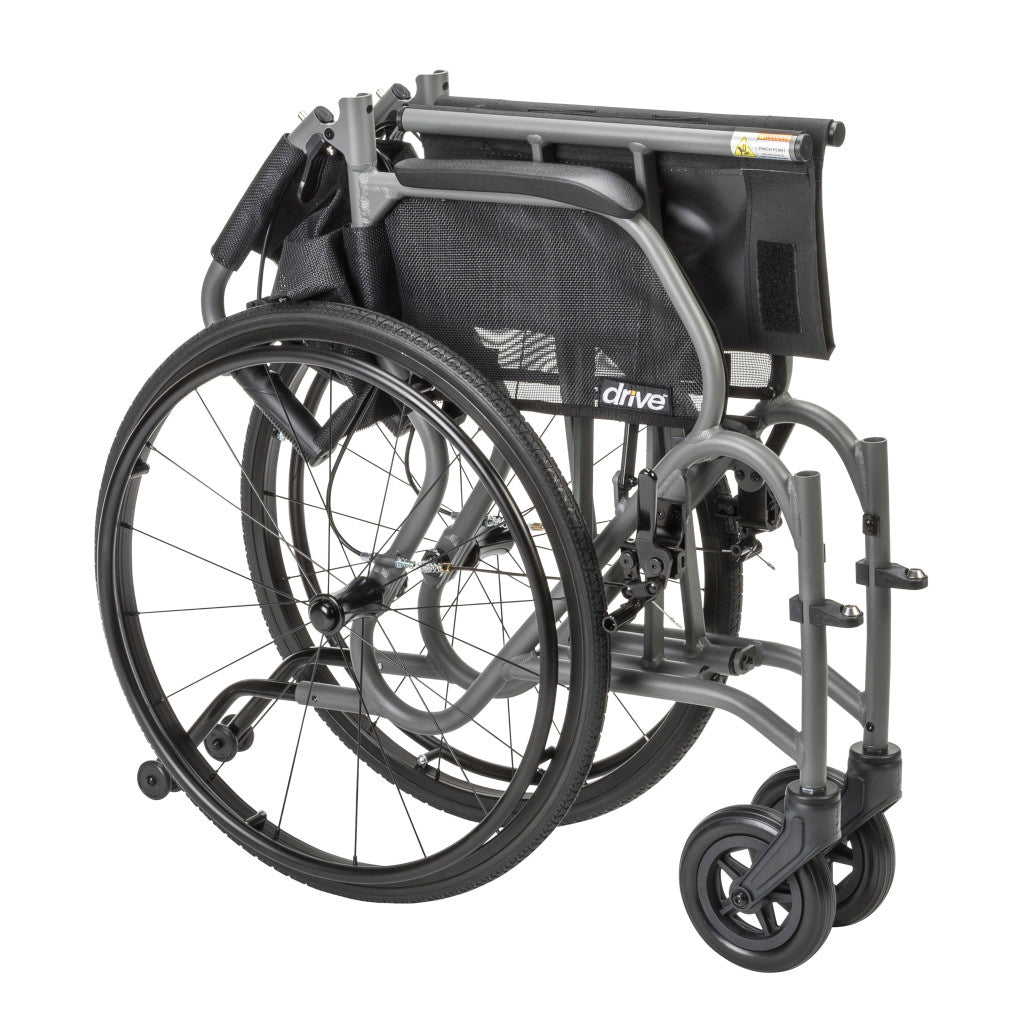

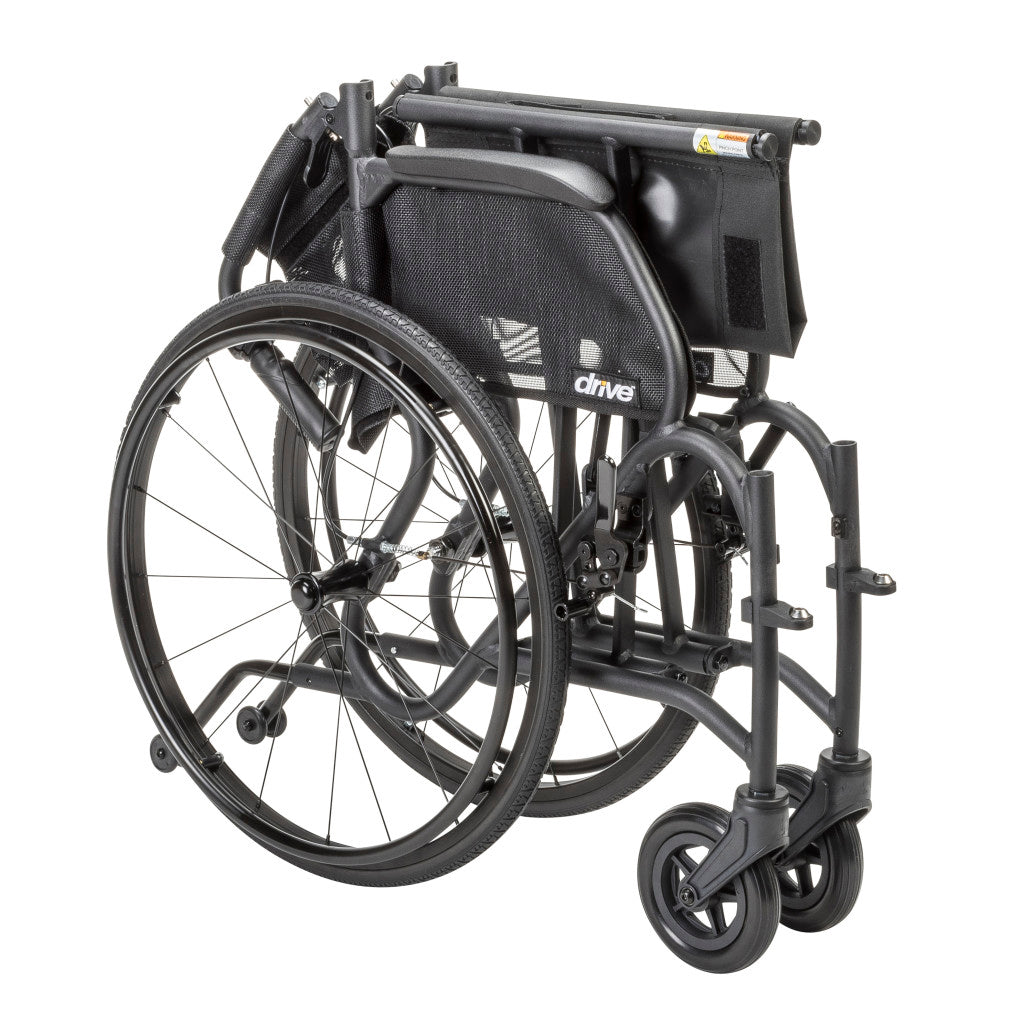

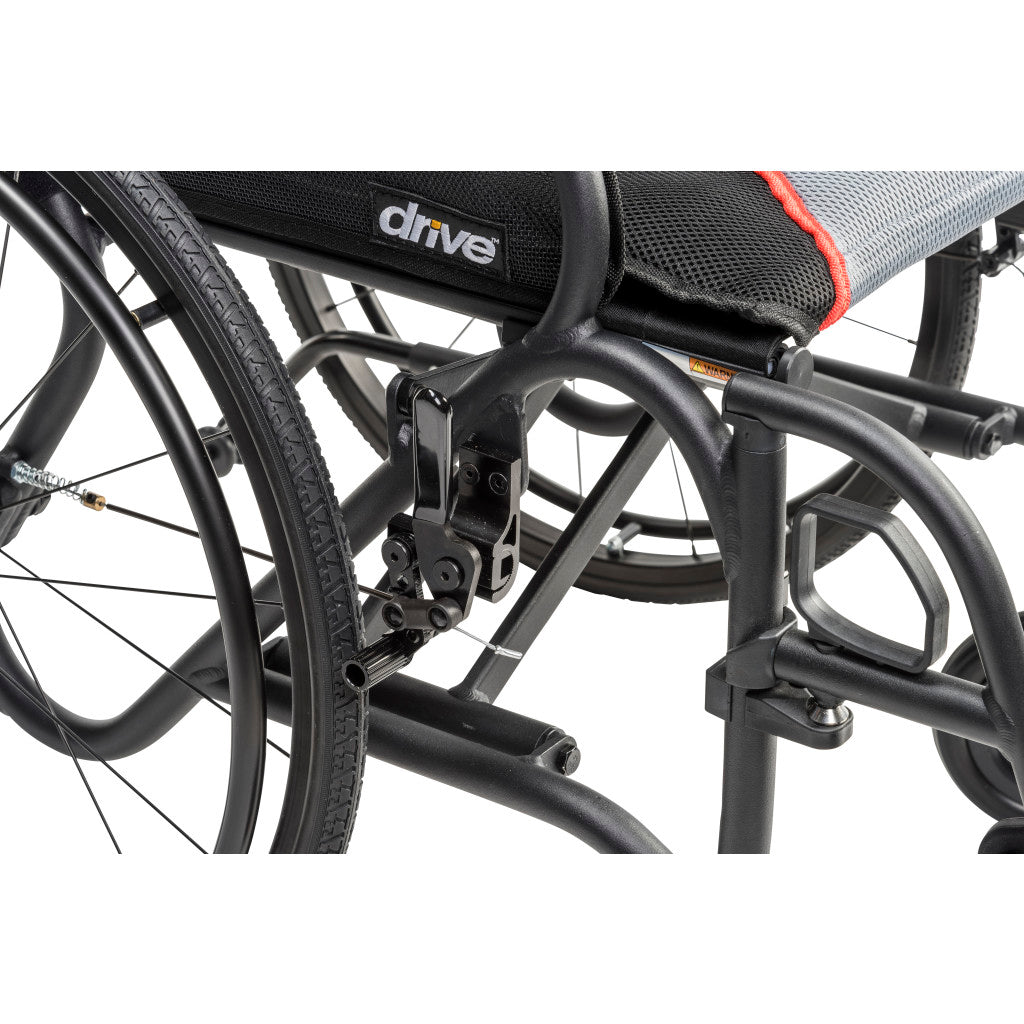

• Fold-down backrest and folding frame for storage and transport
• Carry handles integrated into the seat

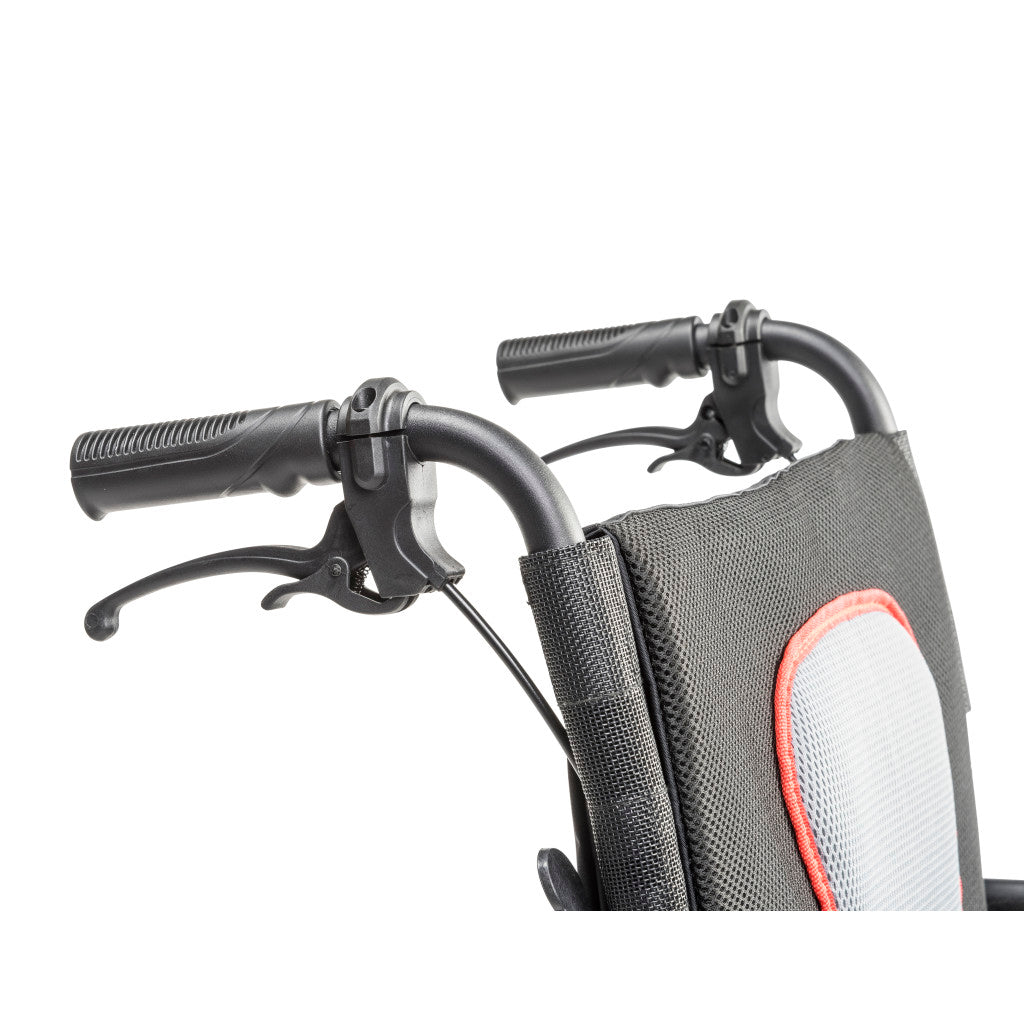

• Attendant brakes beneath the push handles, with a locking mechanism to hold the chair stationary
• Wheel locks on both rear wheels, engaged by pushing the handle fully forward

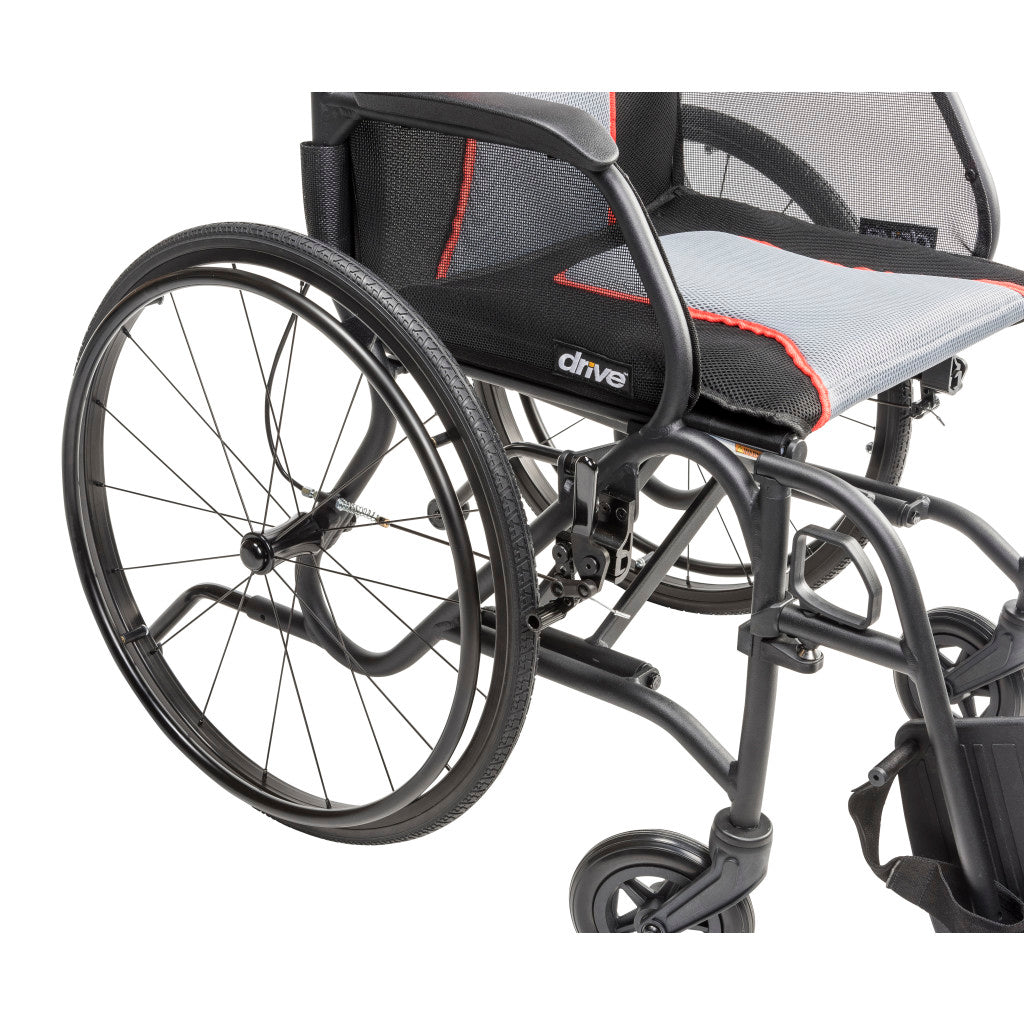

• Spoke rear wheels with handrims for self-propelling
• Solid rubber treaded tires that do not require inflation

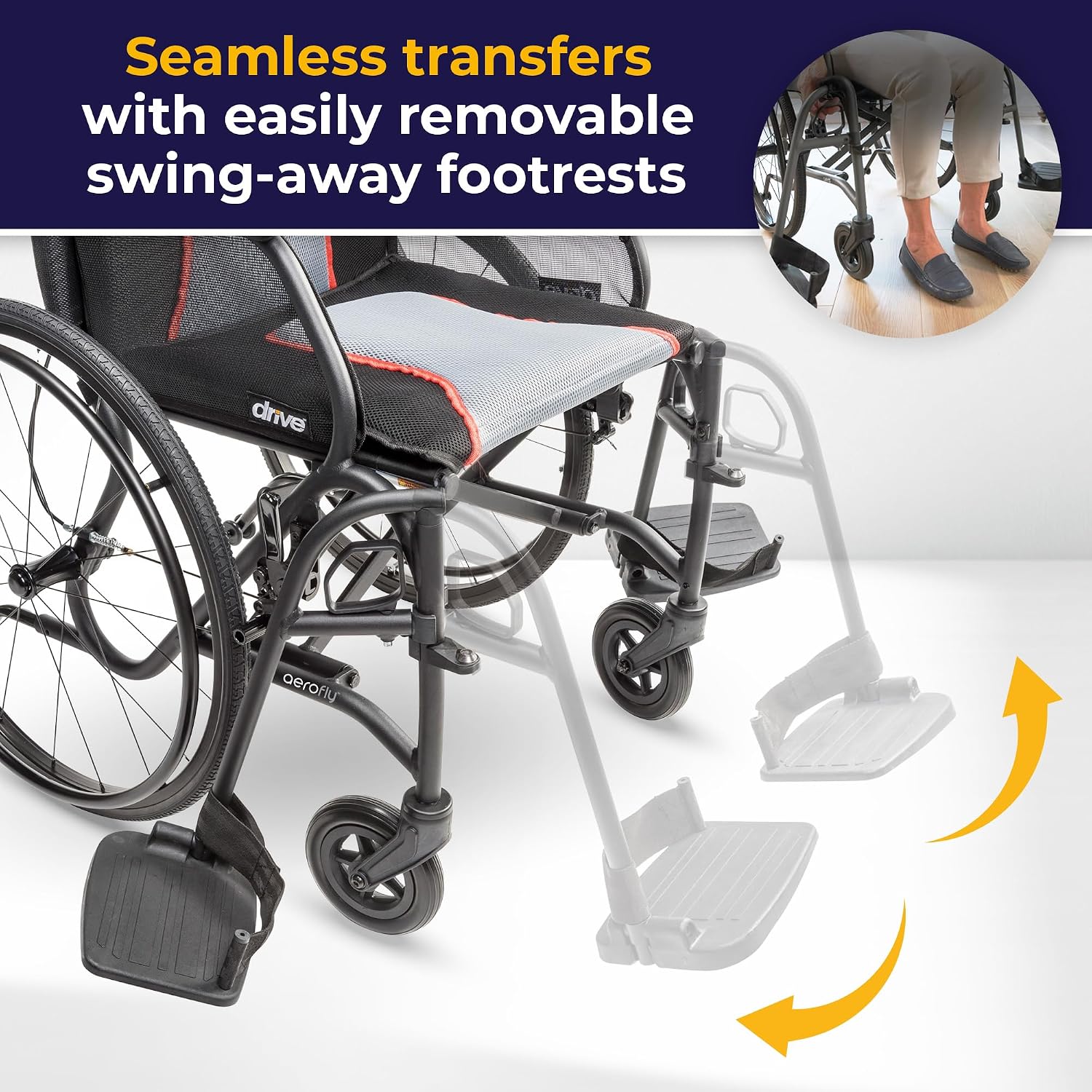

• European-style swing-away footrests with ergonomic release levers and integrated heel loops
• Height-adjustable footplates

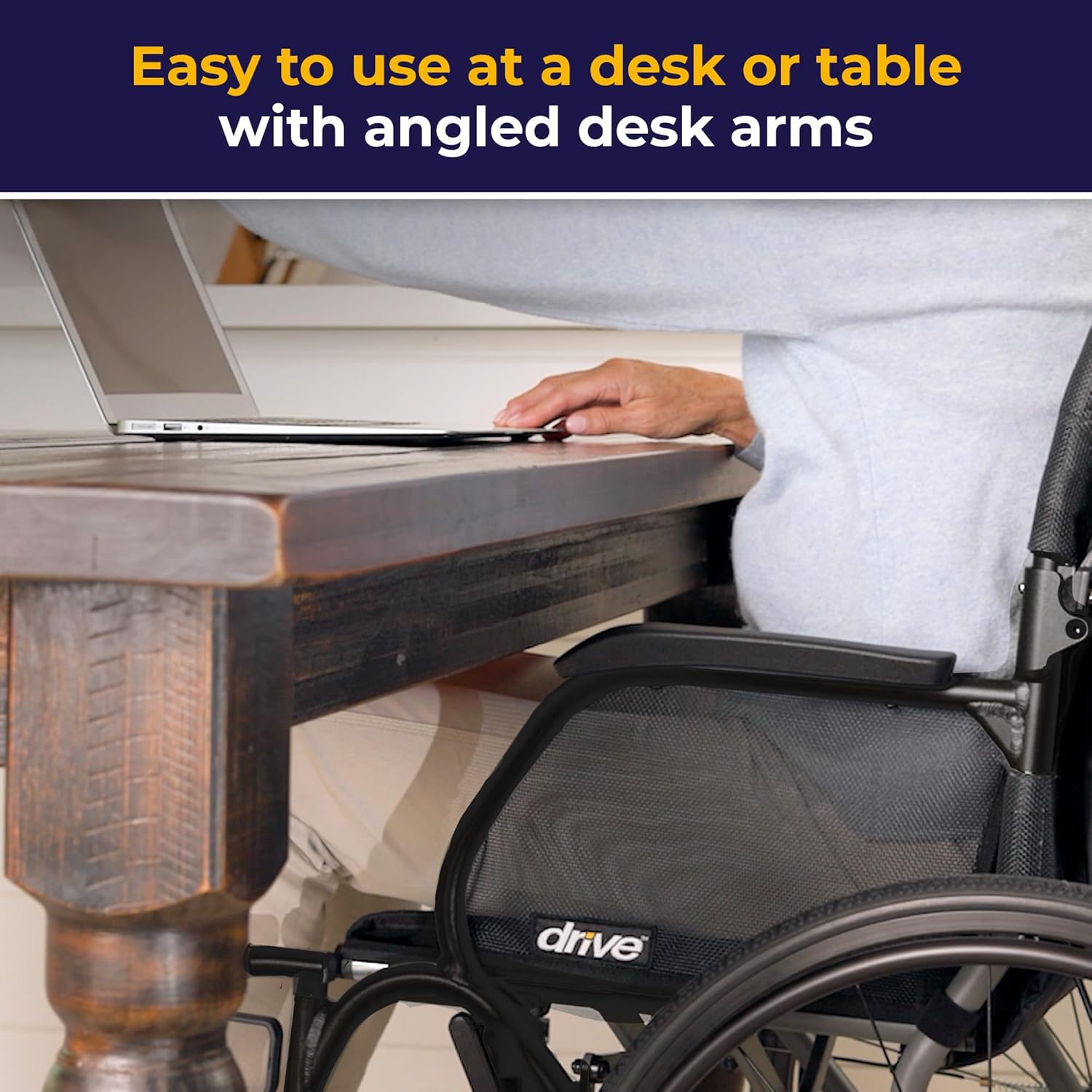

• Fixed, desk-length arms with moulded armrest pads

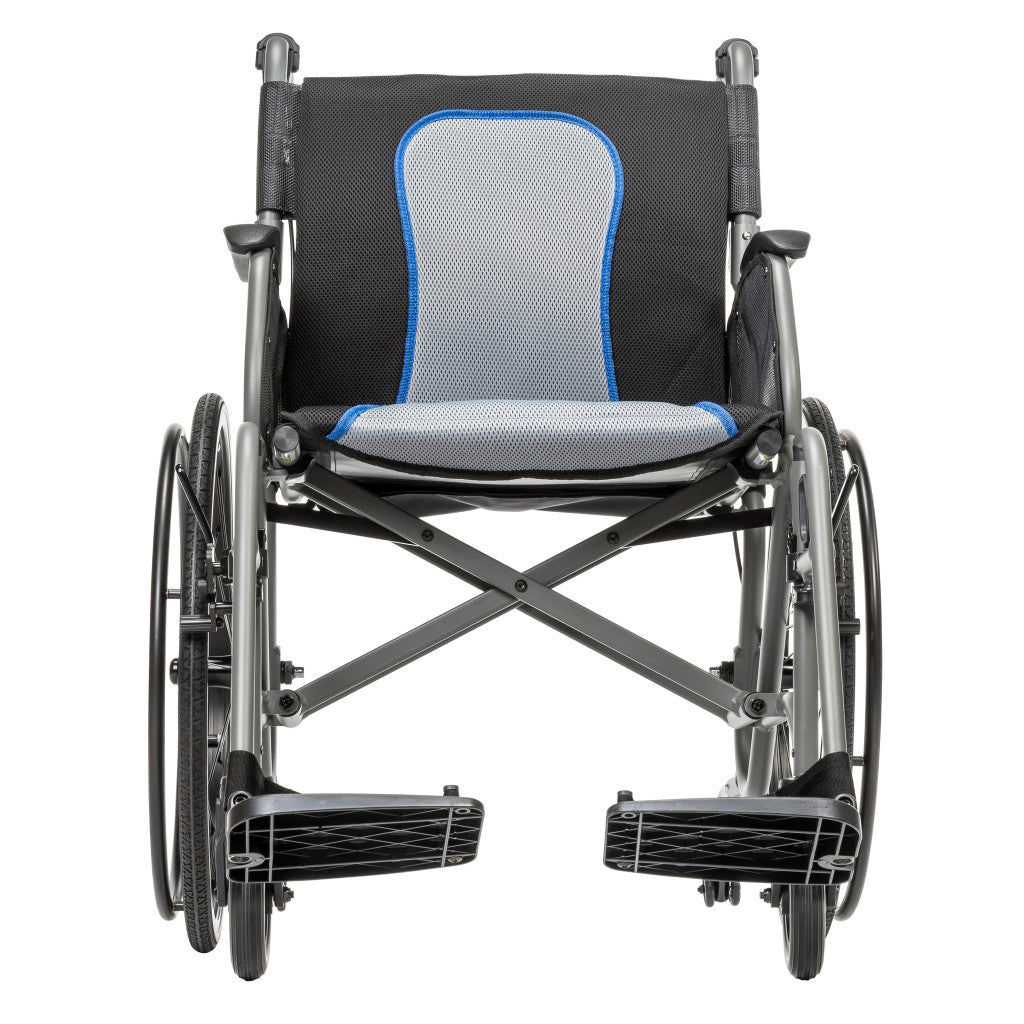

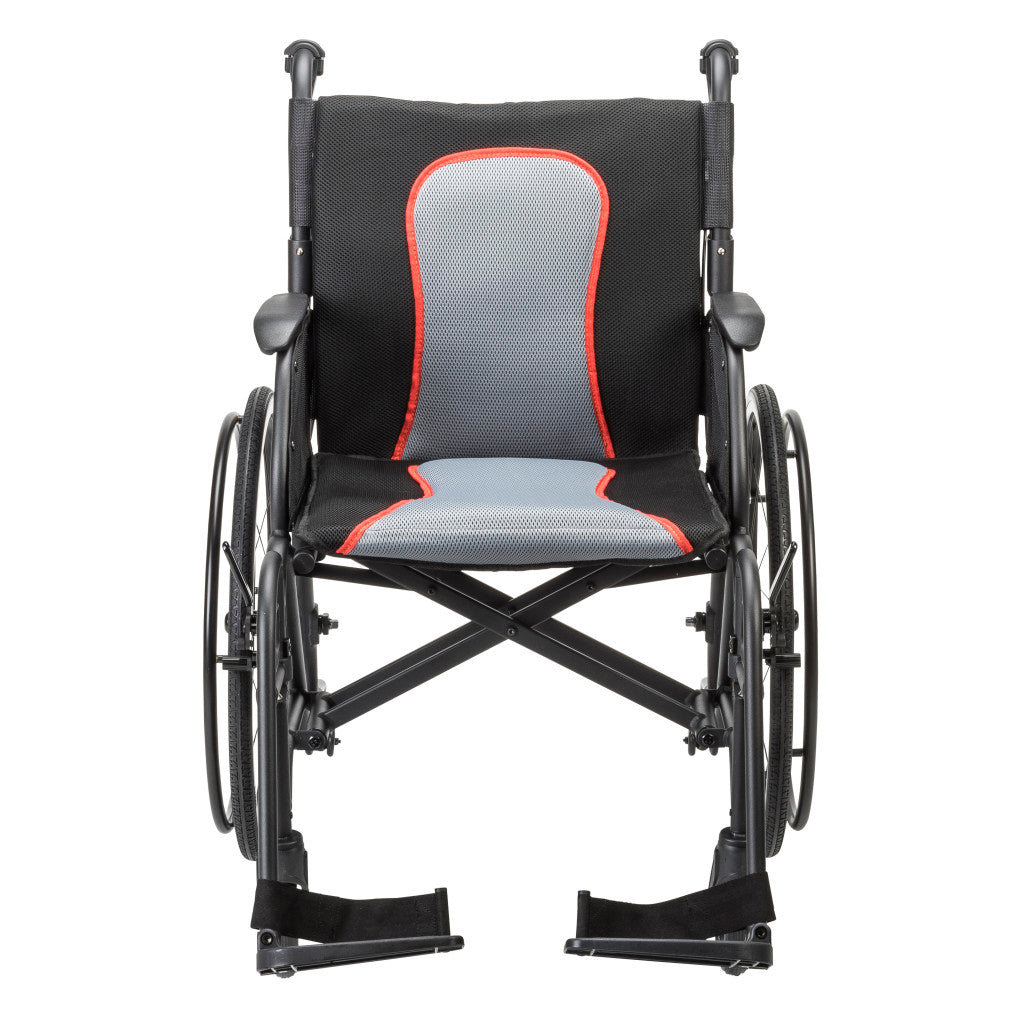

• Removable padded seat and back overlay cushions secured with hook and loop strips

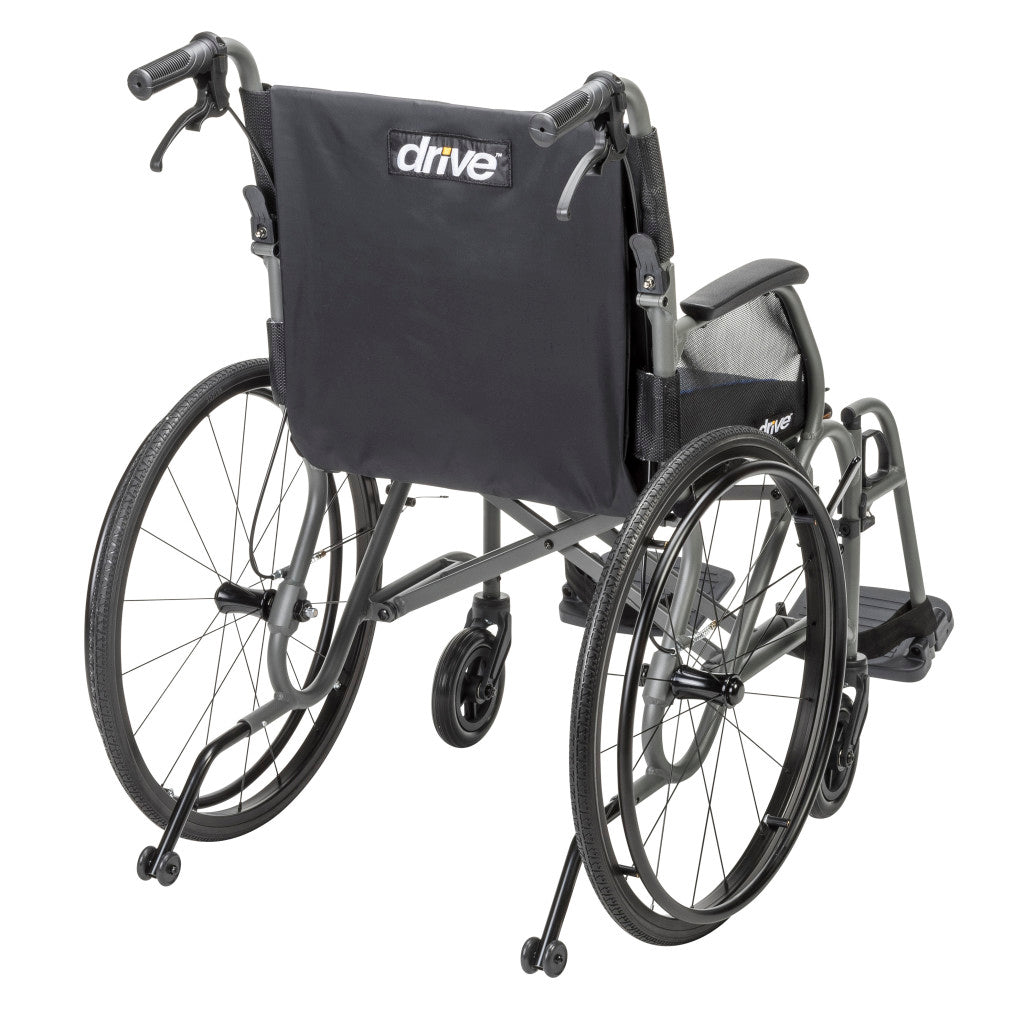

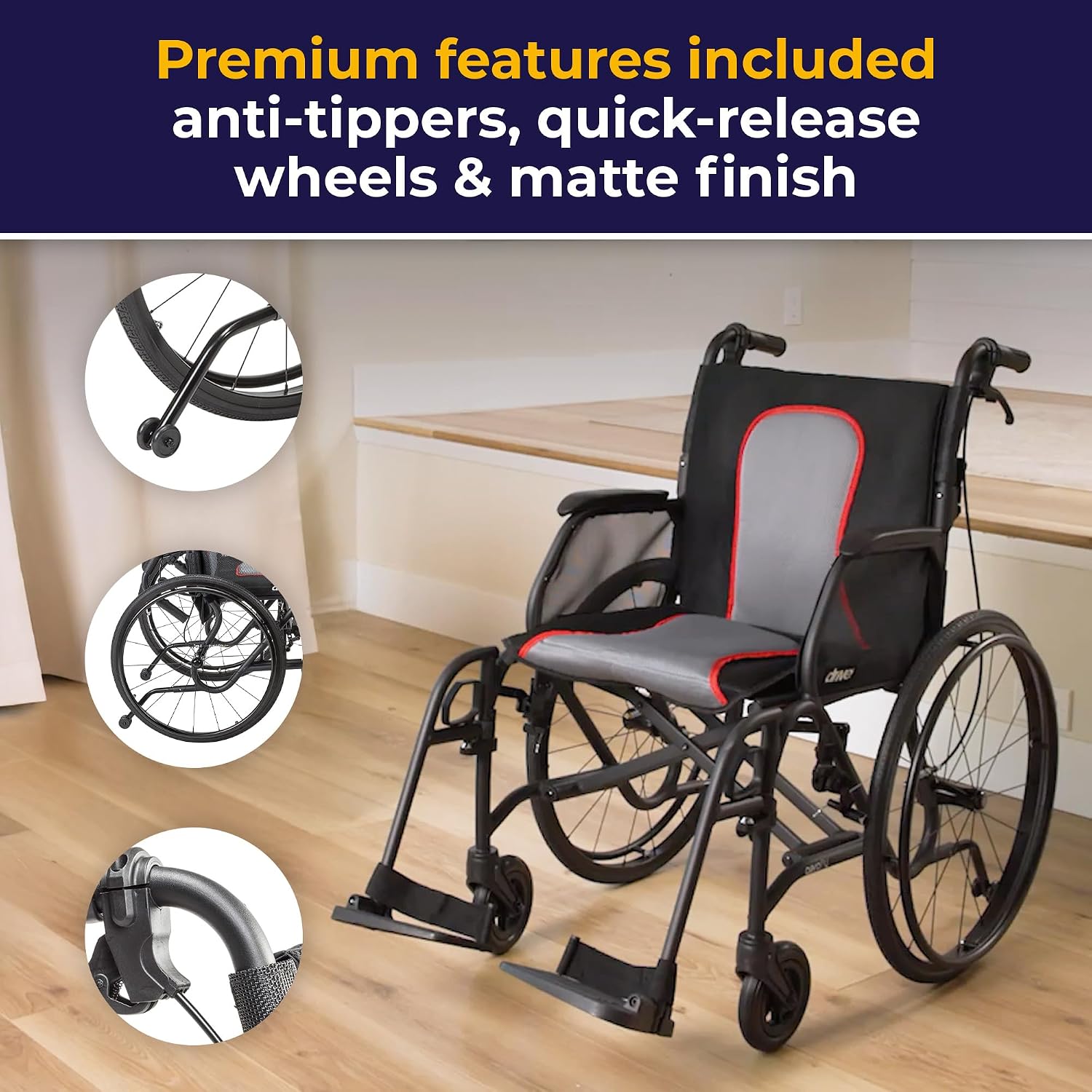

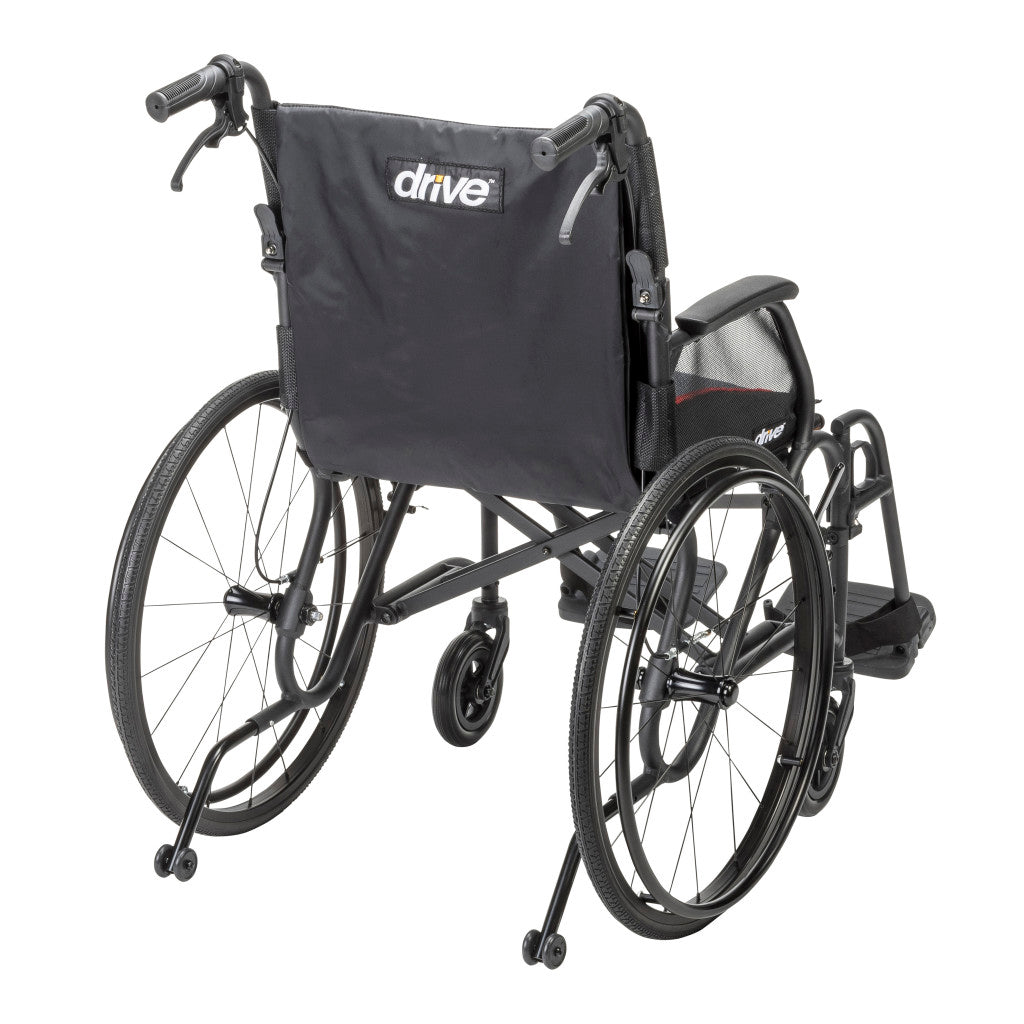

• Wheeled rear anti-tippers supplied as standard

Directions for Use

The wheelchair arrives folded with the rear wheels detached. Setting it up for the first time involves the following.

• Open the frame by placing both hands on the seat rails and pushing down and out until the seat sits level
• Raise the backrest supports to upright; the lock engages automatically
• Fit each rear wheel using the quick-release button, and confirm the axles are fully engaged before the chair is used
• Remove the rubber caps from the rear lower frame and insert the anti-tippers until the detent buttons engage
• Attach the seat and back overlay cushions with the hook and loop strips

Safety Information

• Do not use this wheelchair as a seat in a vehicle of any kind. Transfer the user to a seat approved by the vehicle manufacturer and use the restraints provided.
• Do not use the wheelchair on roadways, streets, or any surface carrying vehicular traffic.
• Do not attempt inclines of 10 degrees or greater without assistance.
• Do not use the wheel locks to slow a descent down an incline.
• Do not stand on the wheelchair, and do not stand on or put weight on the footplates when getting in or out.
• Do not lean over or put weight on the top of the backrest, which can tip the chair.
• Do not set the footplates lower than 2-1/2 in (6.4 cm) from the floor.
• Engage both wheel locks, or lock the attendant brakes, before transferring in or out and while in an elevator or wheelchair lift.
• Position the chair on a smooth, stable, level surface before any transfer.
• Rotate the casters to the forward position and engage the wheel locks before reaching or leaning forward.

These are the essentials only. Read the complete cautions, warnings, and maintenance instructions in the manufacturer's manual under Resources before using the wheelchair. If you are unsure whether this chair suits your needs, speak with a physician, occupational therapist, or physiotherapist.

Care Instructions

• Wipe the parts with a clean, soft cloth at least once a week
• Metal parts may be cleaned with auto wax or a similar product
• Dry the chair immediately if it is exposed to moisture
• Do not use an abrasive cleanser, which will scratch the finish
• Clean the tires occasionally with a damp cloth, and replace them if they become badly worn or cracking appears
• Check the front casters periodically and lubricate them occasionally
• Inspect the rear wheels at least once a month to confirm they are still tight

Specifications

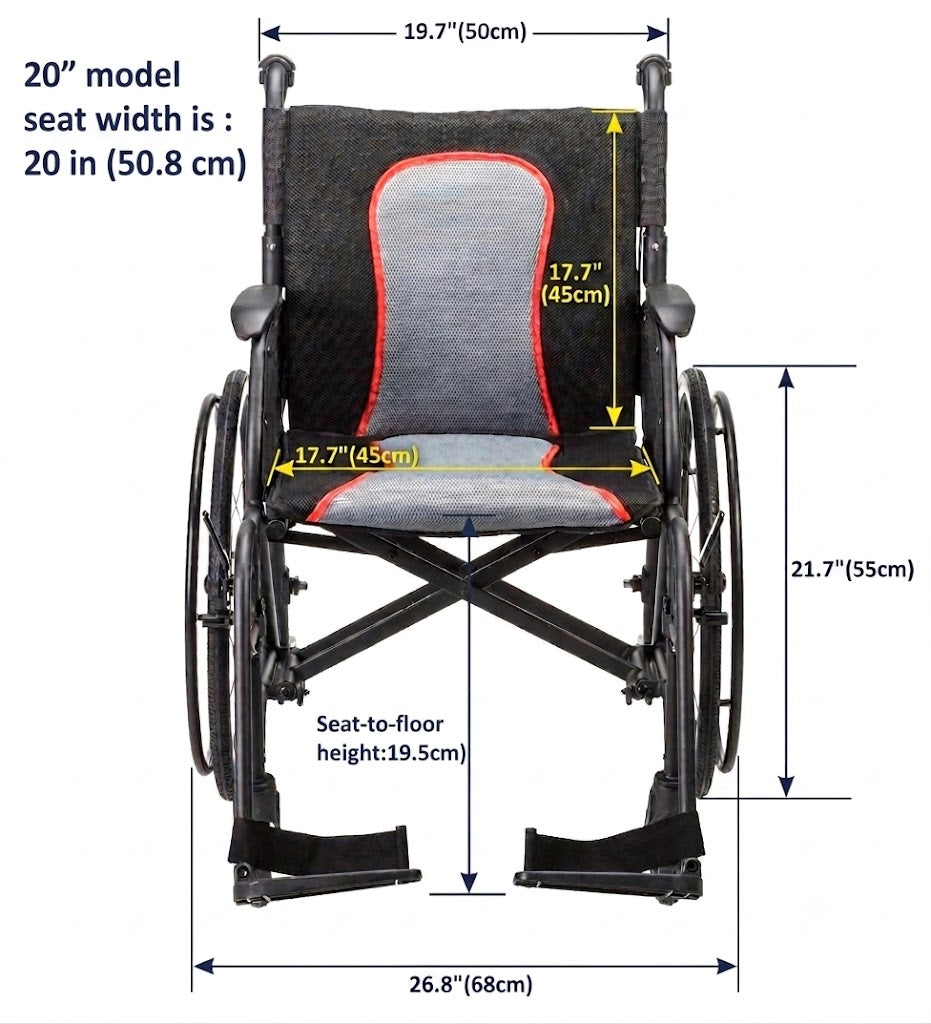

Sizing

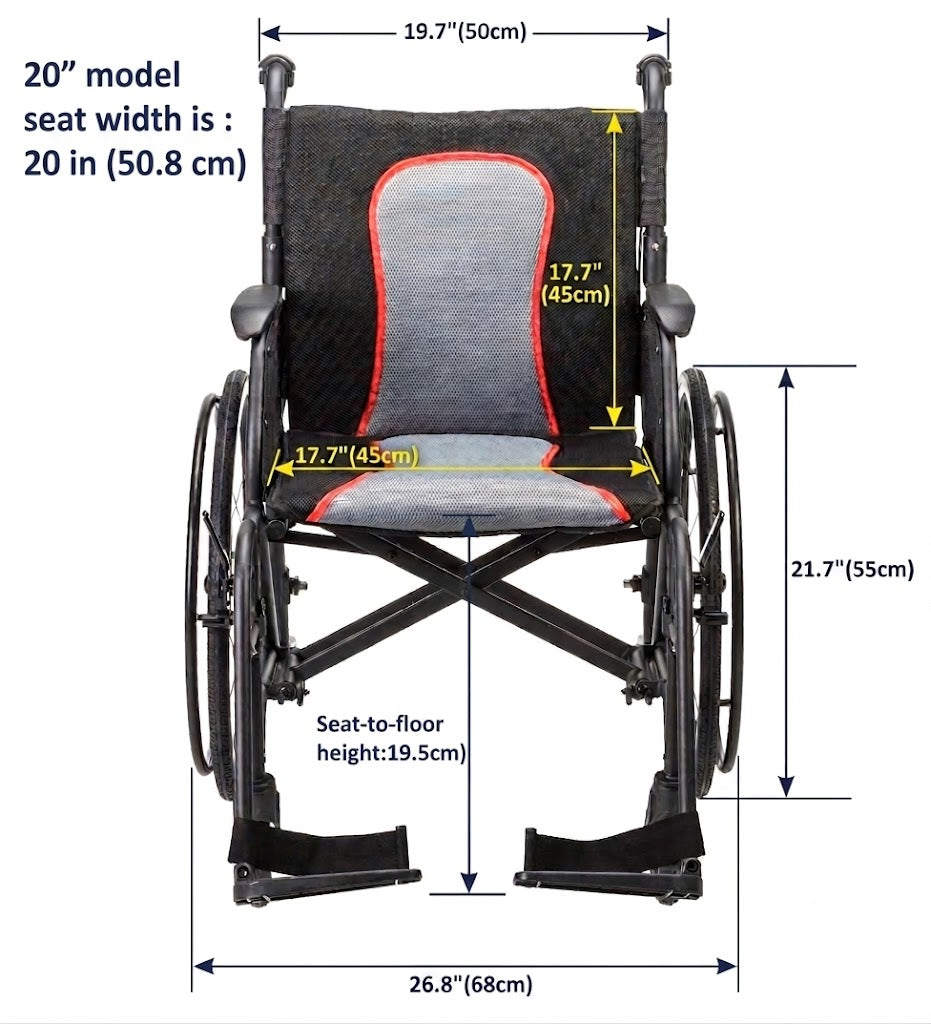

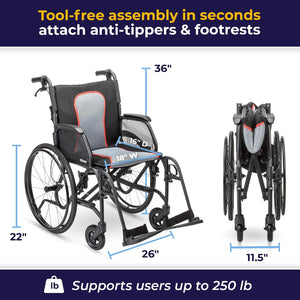

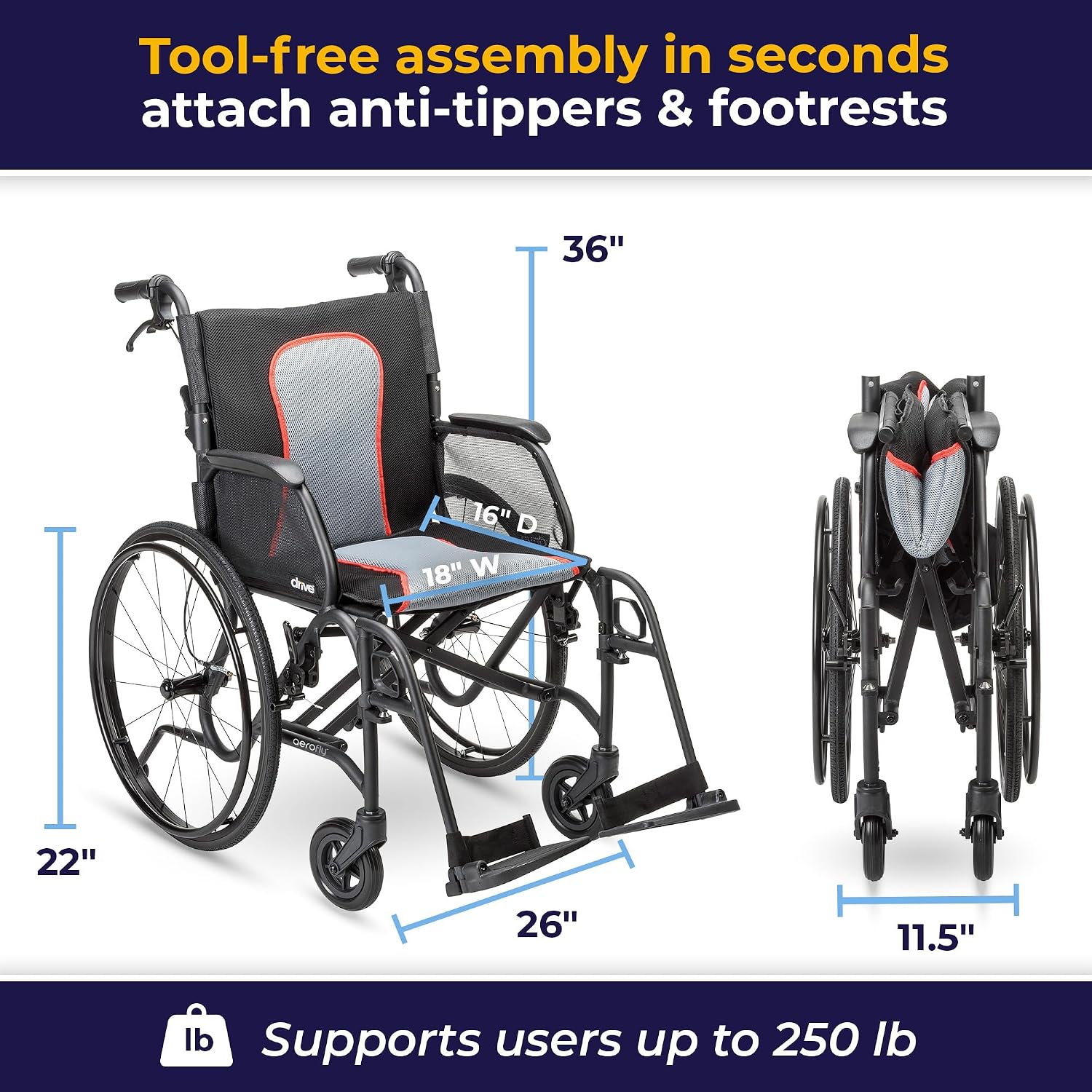

Seat width is the measurement across the seat between the side panels. Measure the widest point of the hips and thighs while seated and allow clearance on each side so the user is not resting against the panels. Check the overall width of the chair against the narrowest doorway or hallway it needs to pass through, and check the folded dimensions against the boot or storage space it will be kept in. Weight capacity differs between the two seat widths.

Resources

• AeroFly Wheelchair Manual (PDF)

Package Includes

• AeroFly Ultra-Lite Wheelchair frame with seat and backrest
• Two quick-release rear wheels
• Two swing-away footrests
• Two rear anti-tippers
• Seat overlay cushion
• Back overlay cushion
• Product manual
