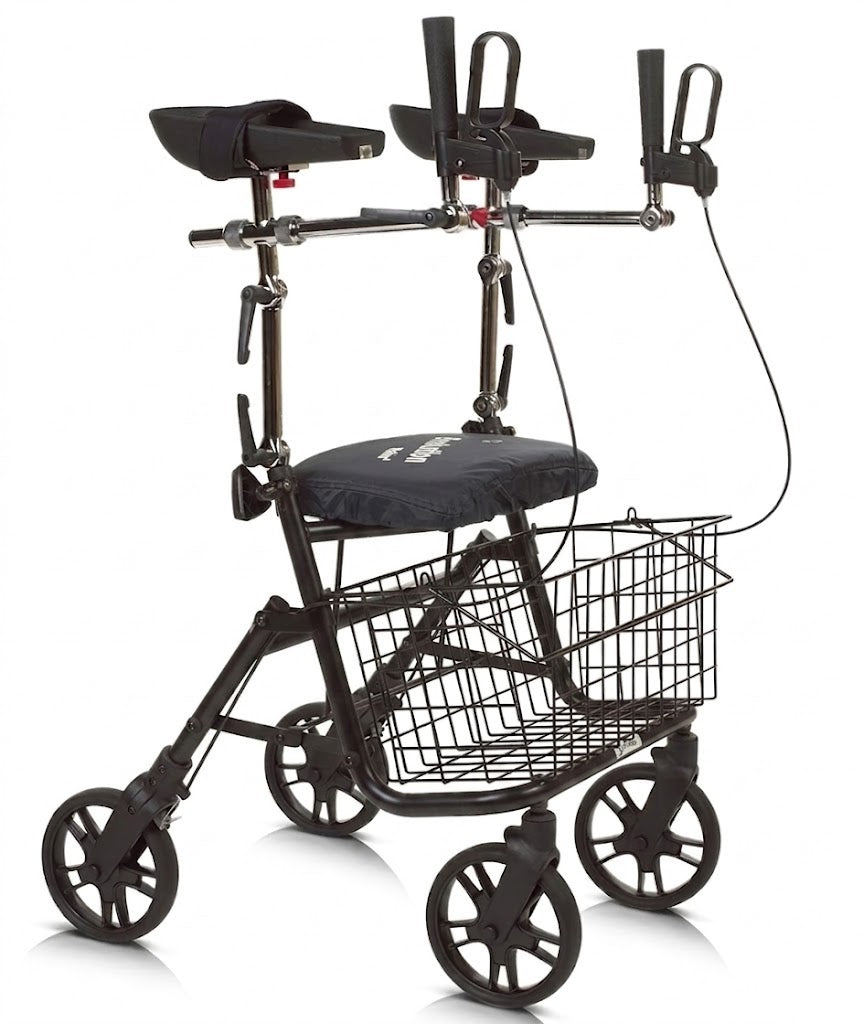

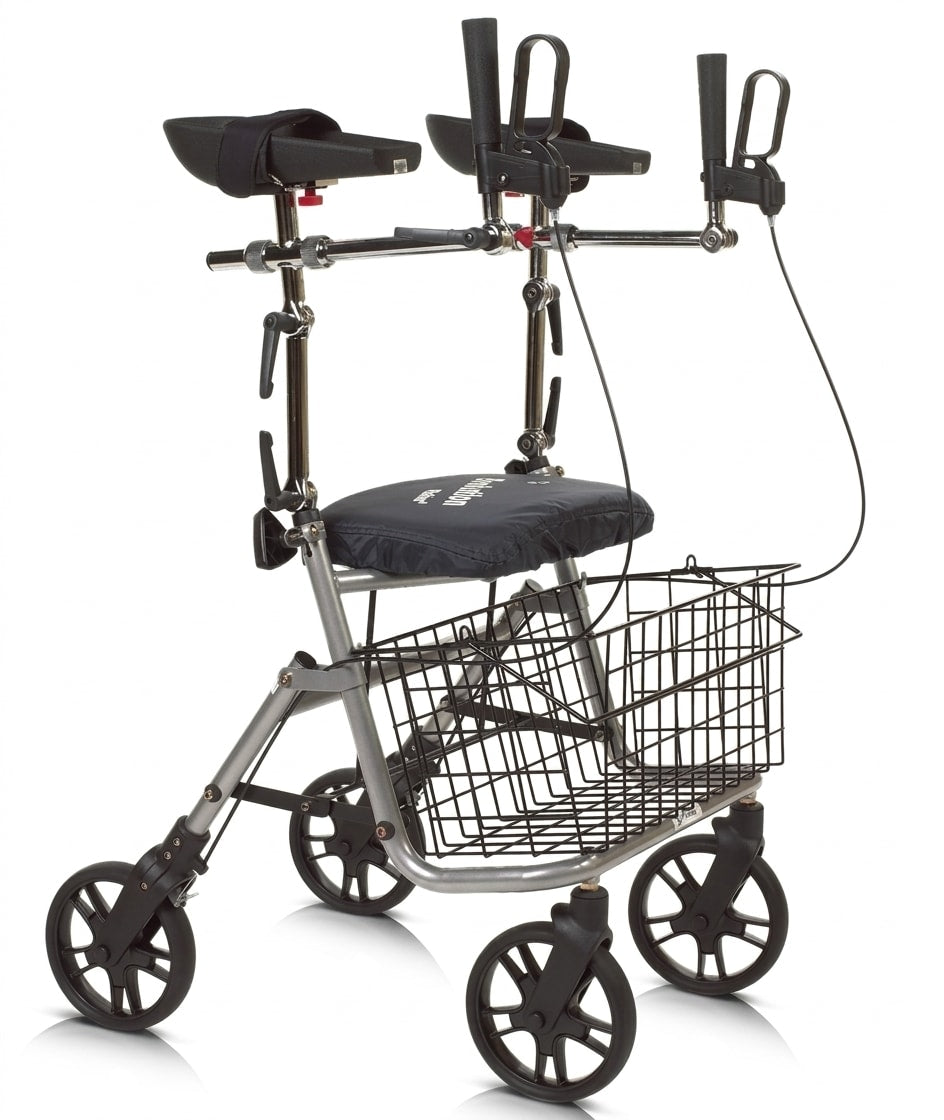

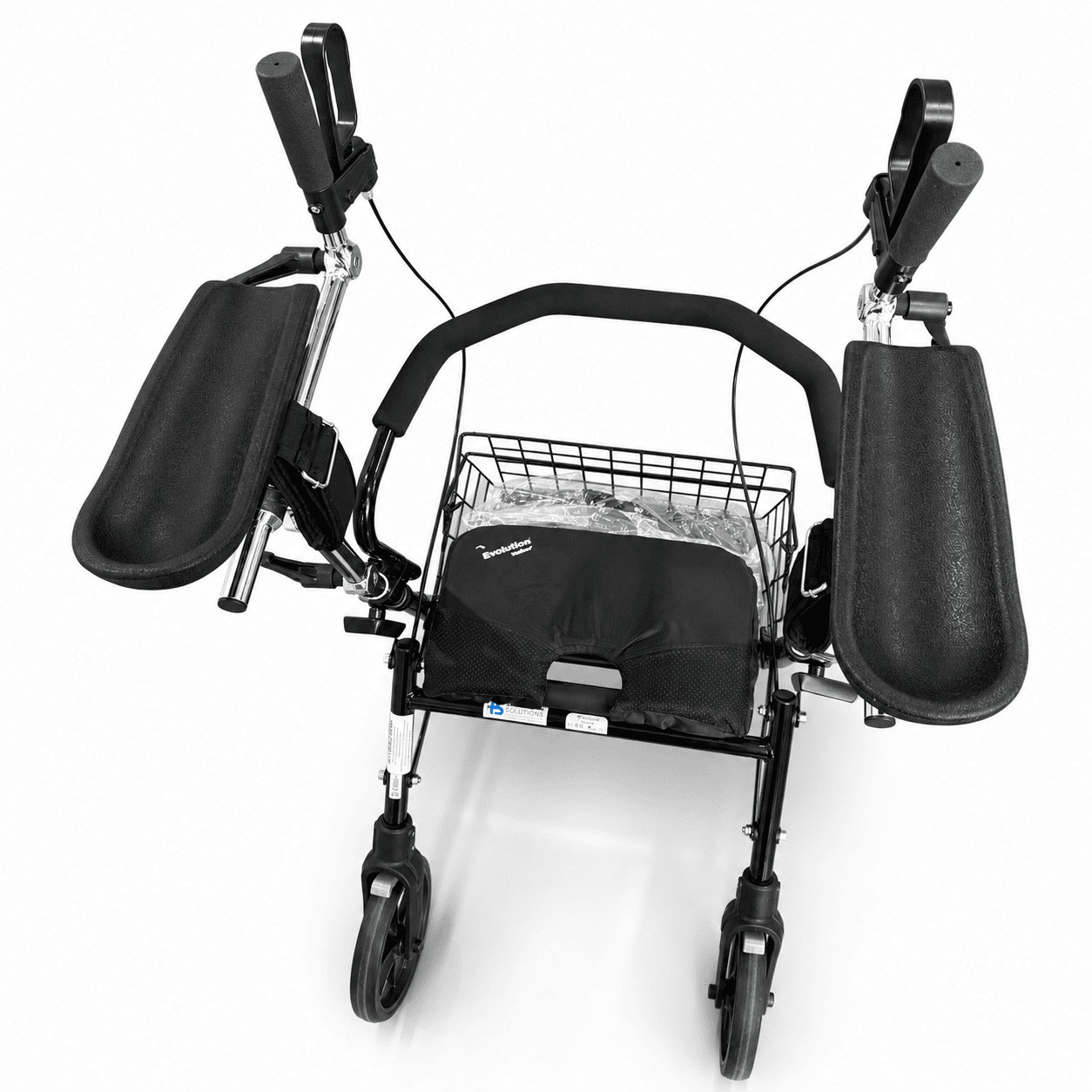

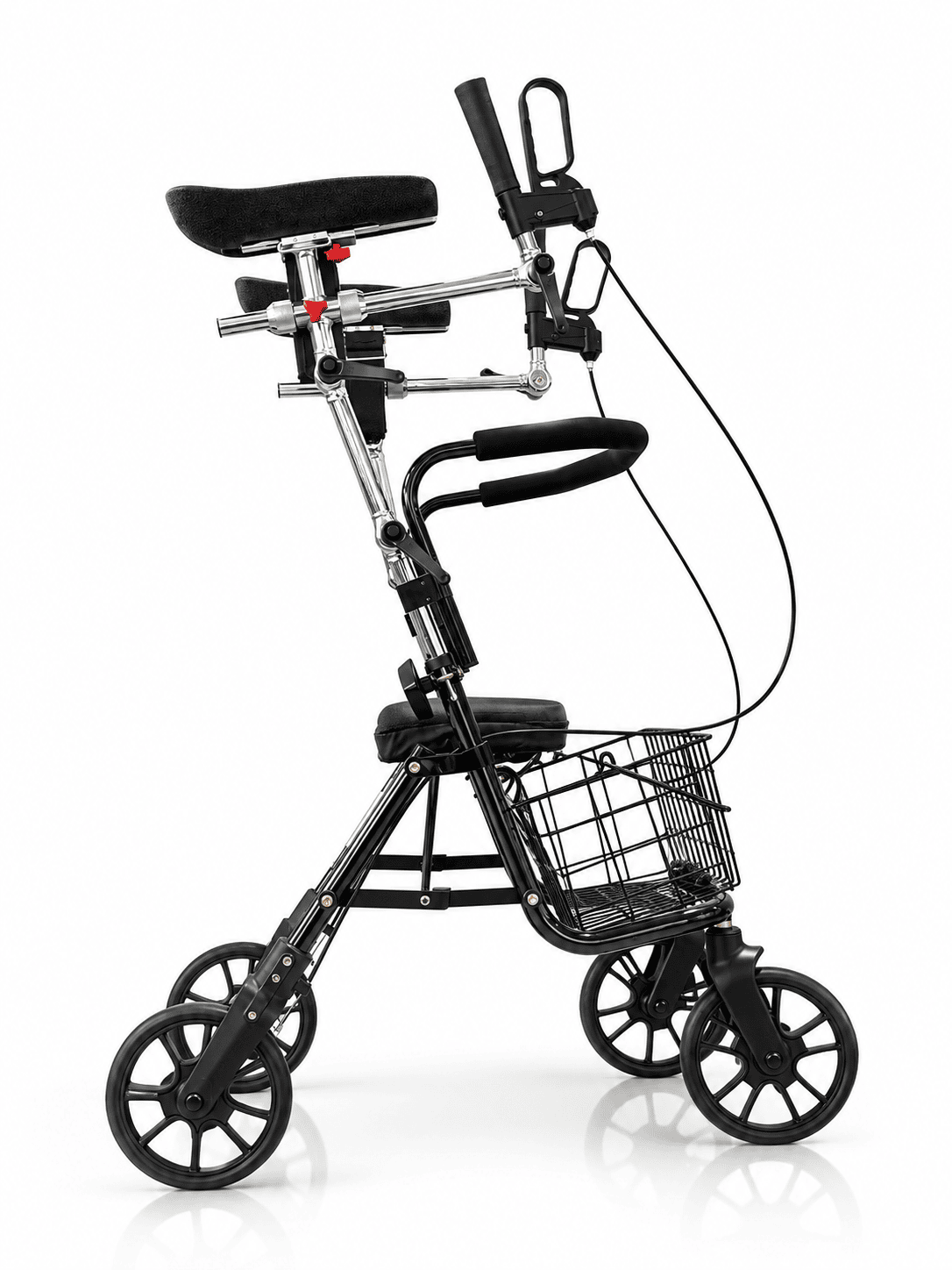

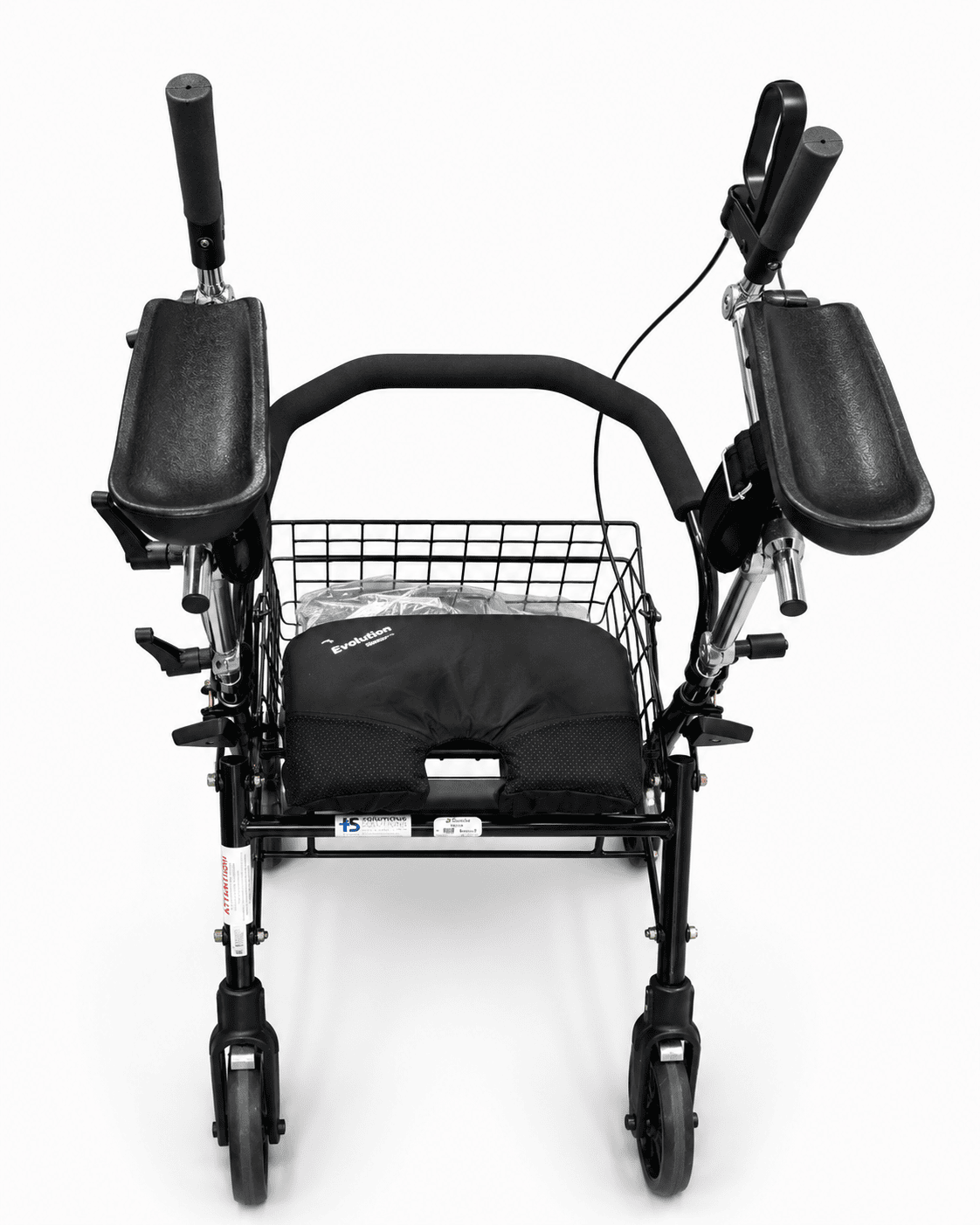

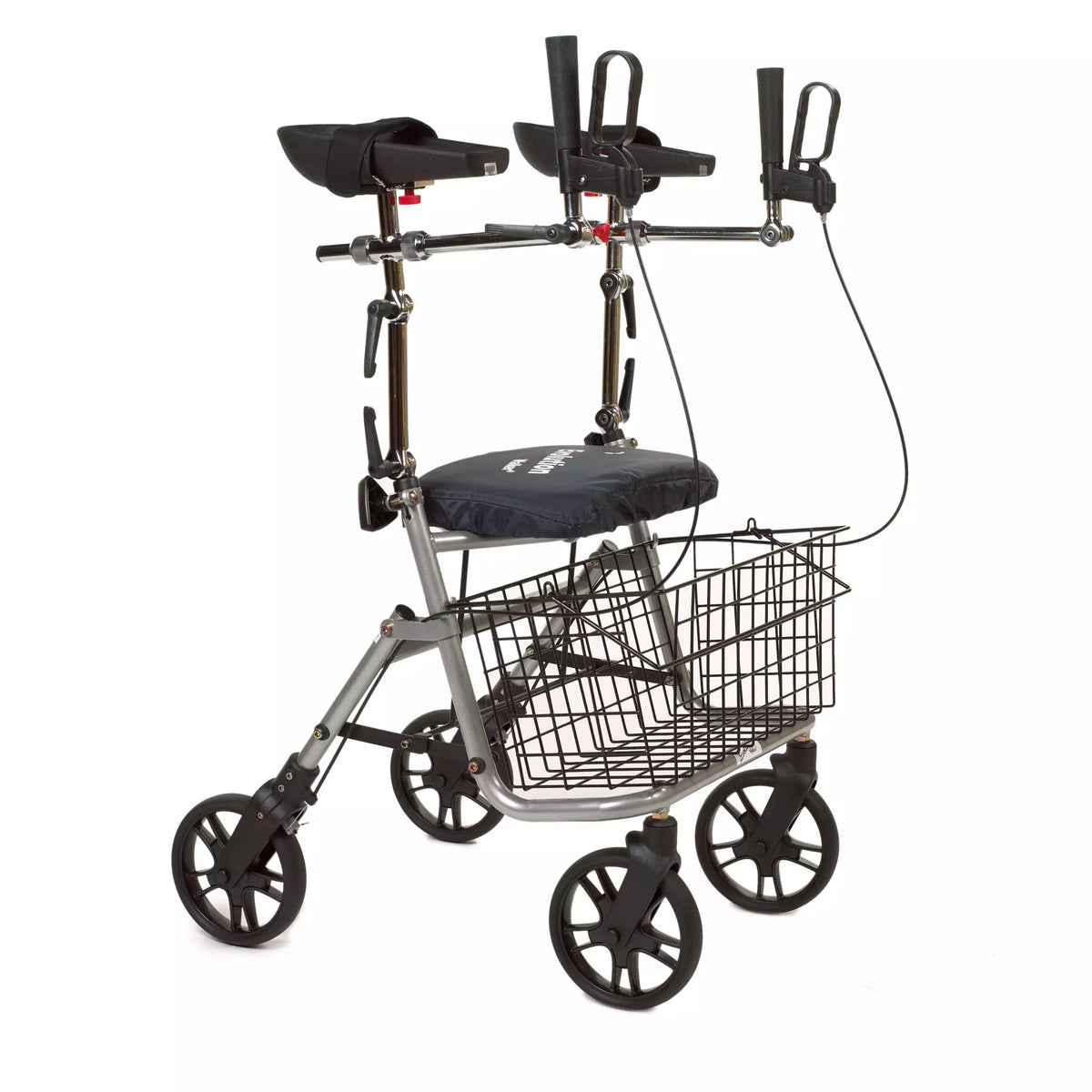

The Evolution Walker with Arm Trough System is a four-wheeled walker supplied with forearm troughs in place of conventional handles. It is designed for people who cannot bear weight comfortably through the hands or wrists, transferring load to the forearms through padded troughs to help the user stay upright with a stable base of support.

The walker is built on a powder coated cold rolled steel frame with stainless steel and plated fasteners, a solid seat base with a removable waterproof cushion, a large removable wire basket and large polyurethane tires. The trough system is adjustable at five points so height, angle and position can be set to the individual, and the built-in tools mean no separate tools are needed. Trough pads are removable and replaceable on their own, and a removable midsection lowers the overall height range for shorter users.

Available in Low and Regular frame heights. The 28 in (71 cm) wide frames are listed separately.

Features

• Supplied as a complete walker with the forearm trough system fitted
• Padded troughs designed to support the forearms and encourage an upright walking posture
• Multiple adjustment points allow each trough to be positioned to suit the individual
• Built-in tools, so no separate tools are required for adjustment
• Can be configured with troughs on both sides, or on one side with a standard handle opposite
• Can be set up for users with one-sided weakness
• Trough pads are removable and replaceable independently of the rest of the assembly
• Removable midsection allows a lower overall setting
• Scratch resistant powder coated heavy-duty steel frame

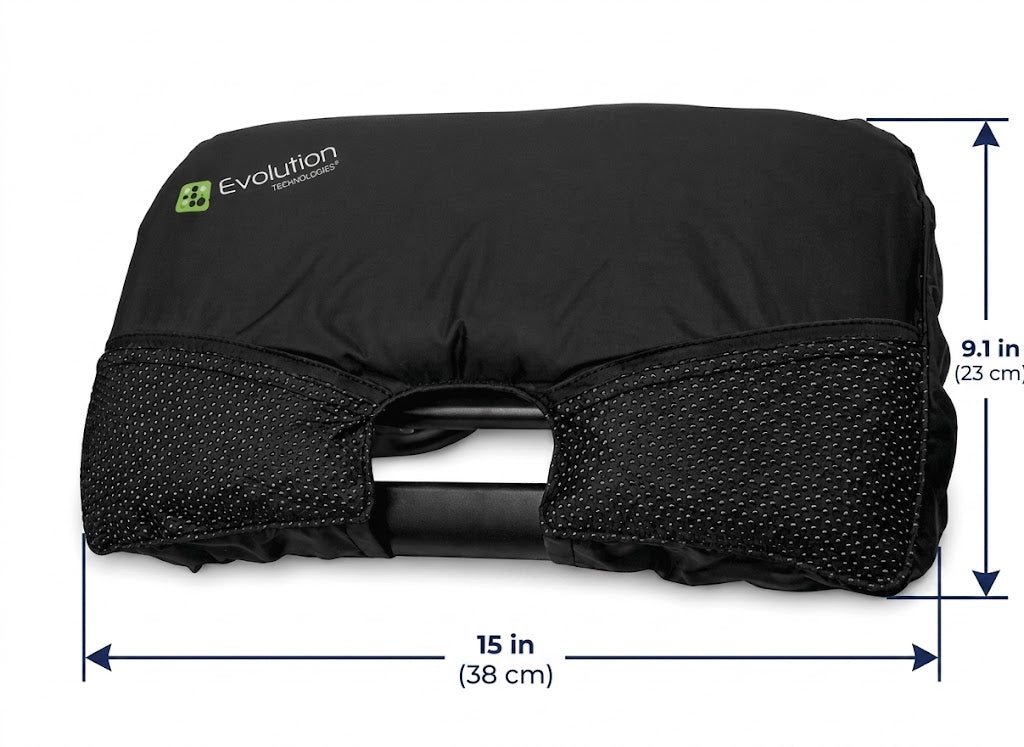

• Solid plastic seat base with a removable fitted waterproof cushion

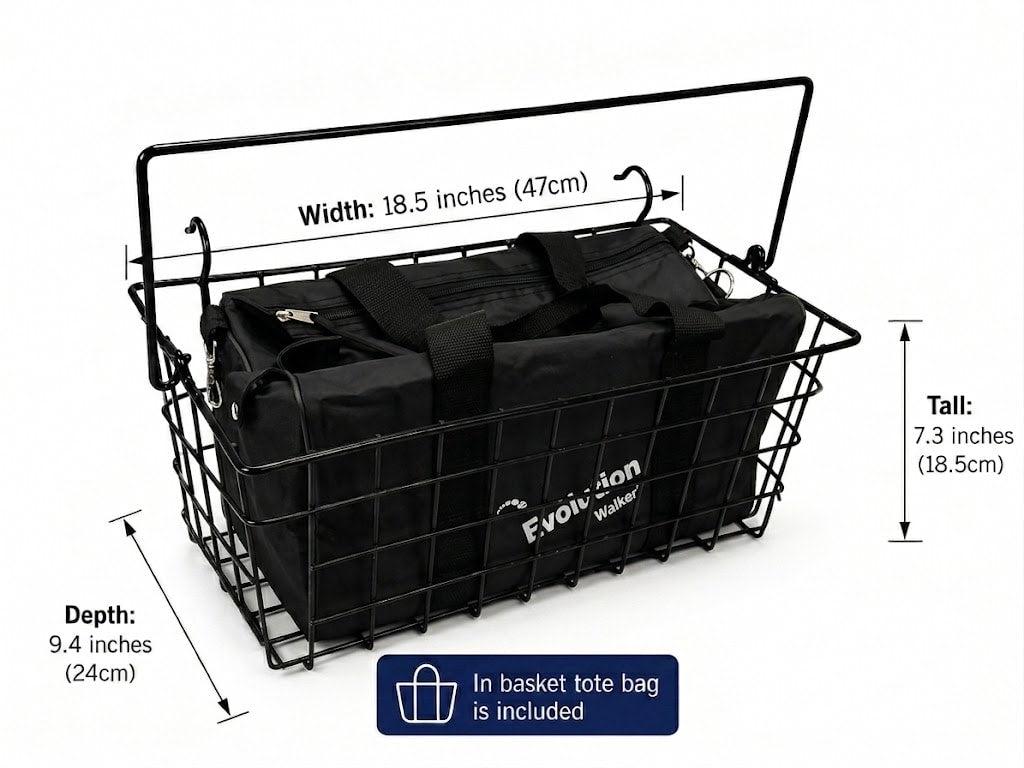

• Large removable wire basket
• Heavy-duty polyurethane tires designed for outdoor as well as indoor surfaces
• Plastic components designed to withstand temperatures as low as -40 F (-40 C)
• Corrosion resistant fasteners throughout, stainless steel or plated
• Compatible with the optional mono-brake system for one-handed braking

How It Works

The forearm rests along the padded channel with the hand forward at the grip, so load is carried through the forearm rather than the palm and wrist. Adjusting trough height, rotation and fore-aft position sets the elbow at a comfortable angle for the user's height and posture. Removing the midsection lowers the elbow pad range. Loop brakes operate the rear wheels for slowing and parking.

Directions for Use

• Have the walker set up and the troughs adjusted by a qualified provider or according to the manufacturer's instructions before first use.
• Set the trough height so the elbow sits at a comfortable angle with the shoulders relaxed and level.
• Check that both troughs are set to matching heights when a pair is fitted.
• Secure every adjustment point using the built-in tools before the walker is loaded.
• Apply both brakes before sitting on the seat.
• Do not use the walker until every adjustment point has been retightened after any change.
• Do not sit on the seat while the walker is moving or unbraked.

Safety Information

• Weight capacity is 350 lbs (159 kg) for both the Low and Regular frames.
• Do not exceed the stated weight capacity.
• Do not use the walker if a trough pad, fastener, clamp, wheel or brake cable is loose, cracked or missing.
• Do not use the arm troughs as a lifting or transfer aid.
• Do not use the walker on stairs or escalators.
• Inspect the pads, fasteners, tires and brakes regularly and retighten or service as needed.


Specifications

Sizing

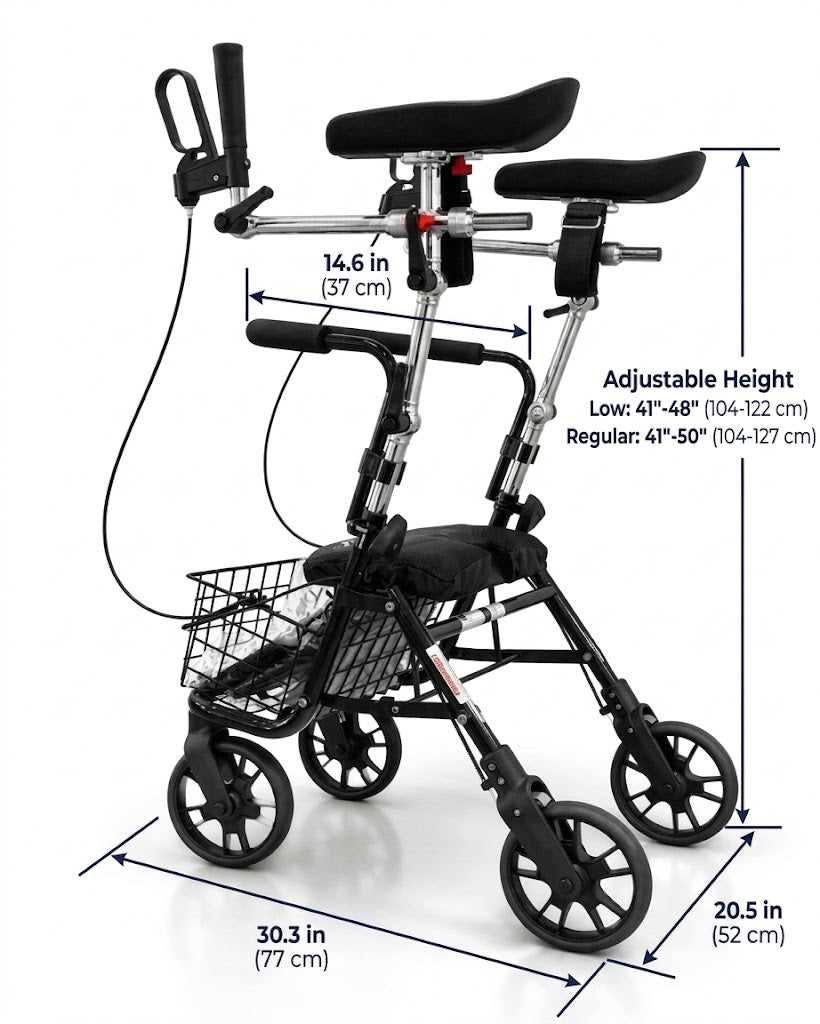

To choose a size, have the user stand upright in their usual footwear with arms relaxed at their sides. Measure from the floor to the crease of the wrist for handle height, and from the floor to the bottom of the bent elbow with the elbow at roughly 90 degrees for elbow pad height. Both sizes share the same seat width and overall footprint; the difference is seat height, handle height and elbow pad range.

Package Includes

• 1 x Evolution walker, Low or Regular as selected
• Arm trough system, fitted (pair)
• 1 x removable seat cushion
• 1 x removable wire basket with tote bag

• 1 x removable backrest

Consult a healthcare professional to determine whether a walker with forearm support is appropriate and to have it fitted and adjusted correctly.
