Description

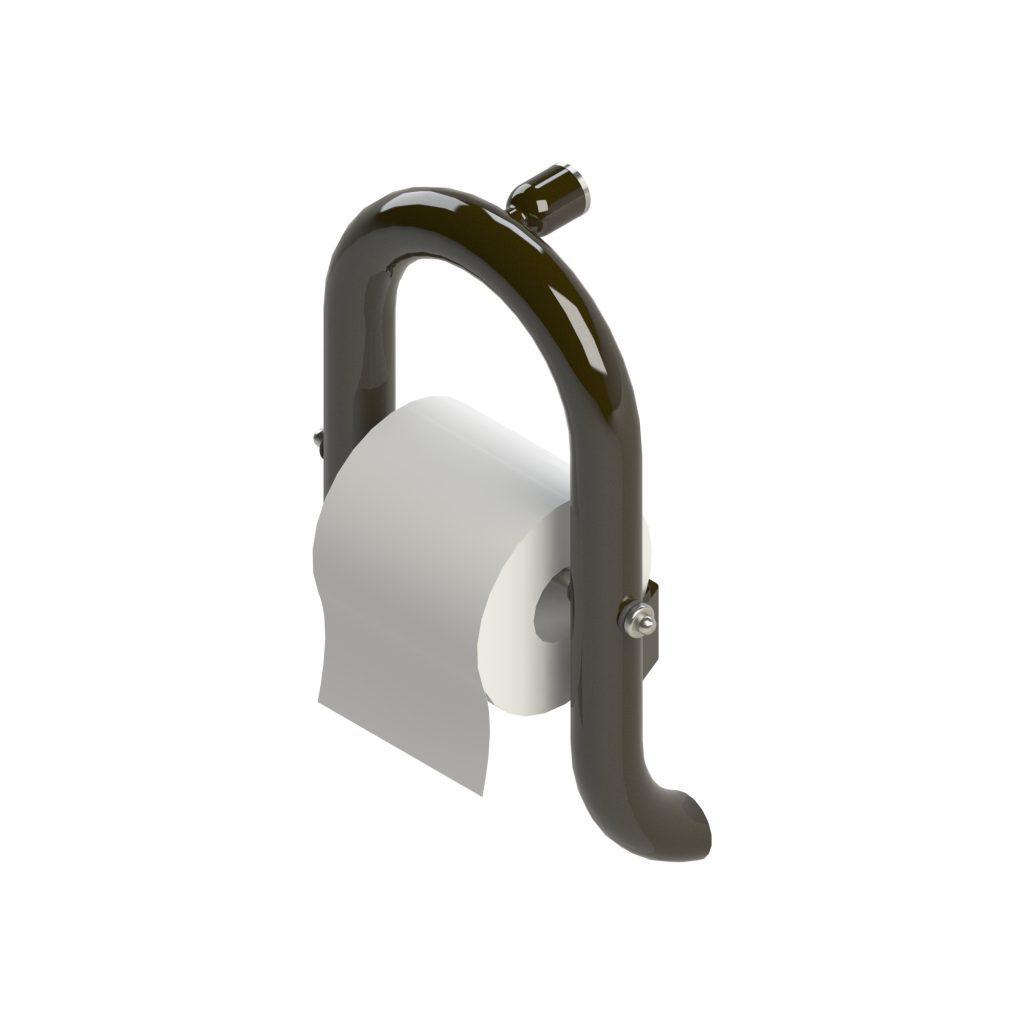

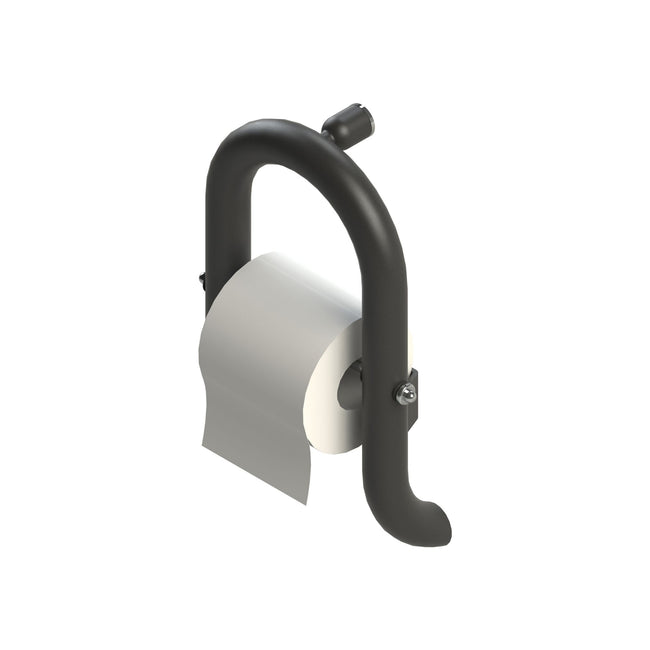

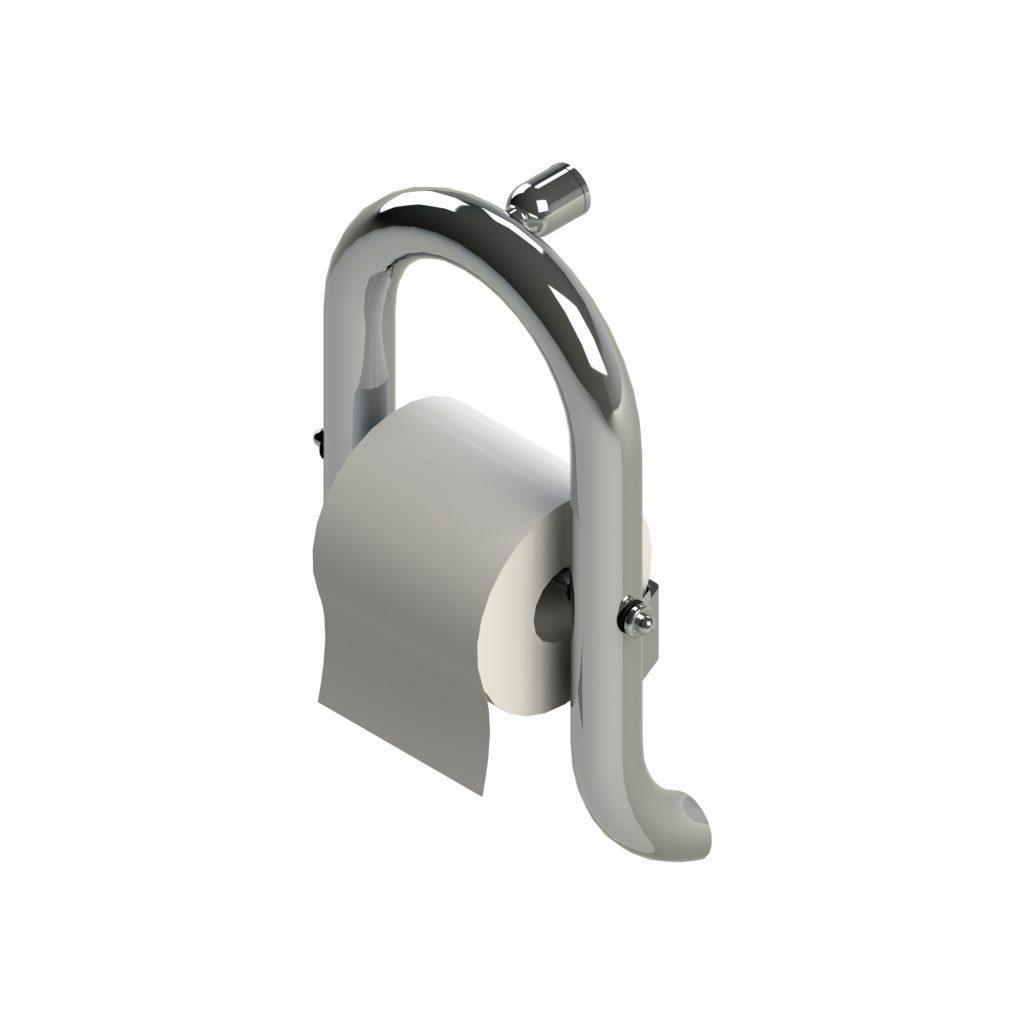

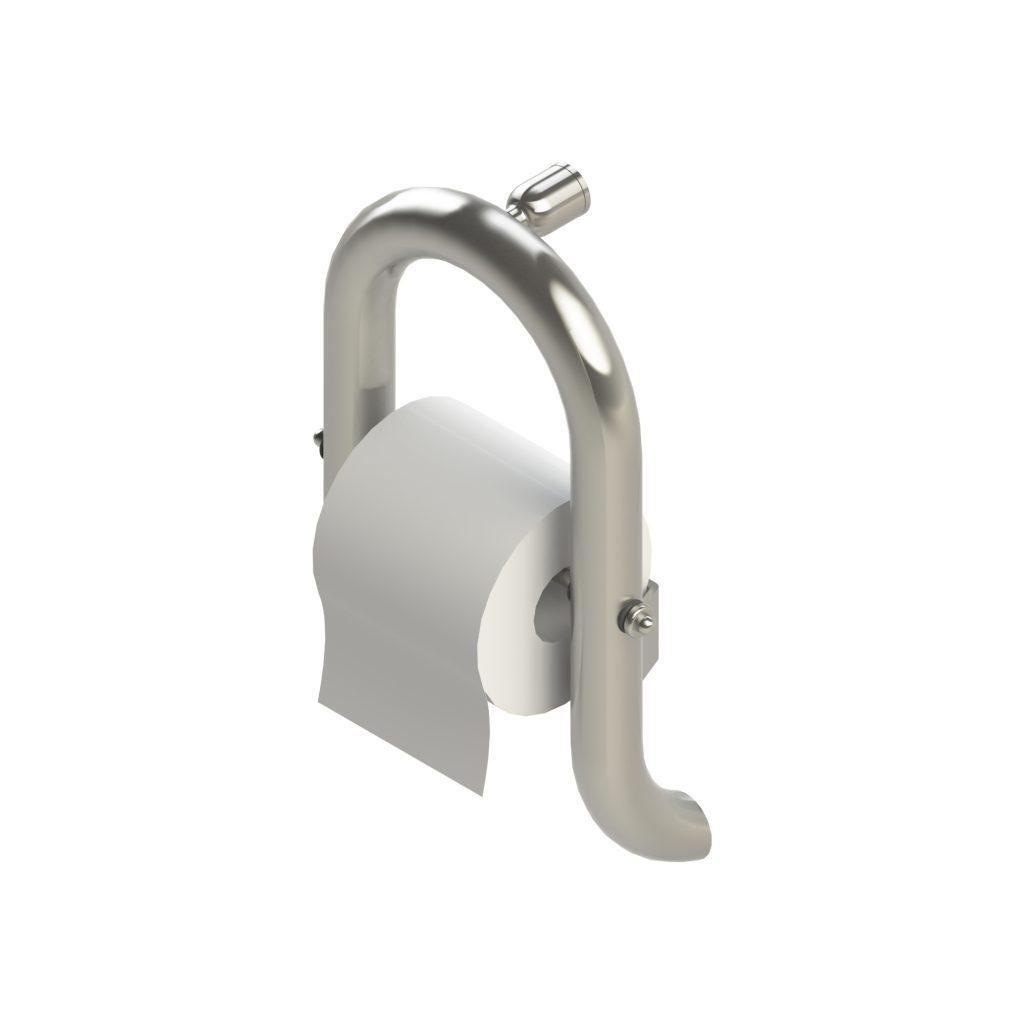

This is a stunning addition for any bathroom, offering discreet support by the toilet, providing easy accessibility without sacrificing design and decor. This elegant design can support up to 500 pounds of weight when secured to mounting structures, making it an ideal and attractive safety accessory for any bathroom.

Features

User Weight Capacity
Supports up to 500lbs / 227kgs when installed to structural wood backing.
Discreet wall stems with concealed screws
Makes mounting areas virtually invisible.
Multi-contact wall support
4 points of contact for maximum structural support.

Specifications

Material	Stainless steel
Finish/Colour	Polished Chrome (-CP) Brushed Stainless (-BS) Powder Coat Bronze (-ORB)
Weight Capacity	500lbs / 227kgs (ADA Compliant) Note: Reduced weight capacity if installed using hollow wall anchors.
Rail Diameter	1.25" / 31.8mm (ADA Compliant)
Wall Clearance	1.50" / 38.1mm (ADA Compliant)
Rail Width	7.25" / 184mm
Rail Height	13" / 330mm
Installation Mechanism	Must screw to wood backing behind wall. Hollow wall anchors can be used when partial wood structure is available (Note: Reduced weight capacity).
Installation Hardware/Fasteners	Full Structure: #10 x 3"/76mm length, stainless steel wood screw (x1) and #10 x 2"/51mm length, stainless steel wood screw (x3). Partial Structure: #10 x 3"/76mm length, stainless steel wood screw (x1) and #10 x 2"/51mm length, stainless steel wood screw (x1) and 3/16-24 x 3"/76mm length, stainless steel bolt and hollow wall anchors (x2).
Fasteners Exposed or Concealed	Concealed; Rail stems conceal mounting hardware + Plastic caps (x3).
Commercial Use	Yes
Residential Use	Yes
Water Resistant	Yes
Rust Resistant	Yes
Country of Origin	China
Shipping Dimensions	14x9x4" / 356x229x102mm
Shipping Weight	4lbs / 1.8kgs
Warranty	Limited lifetime warranty
