Description

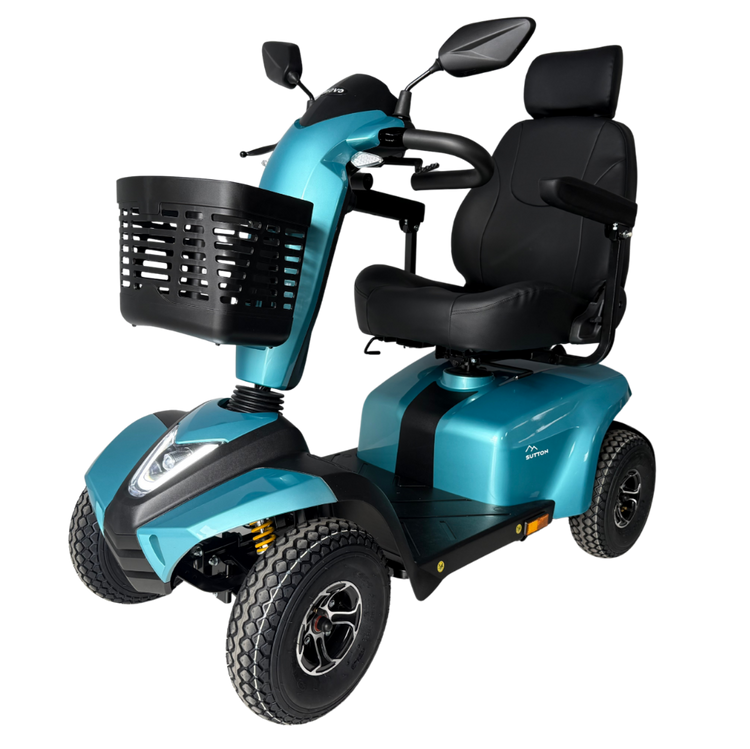

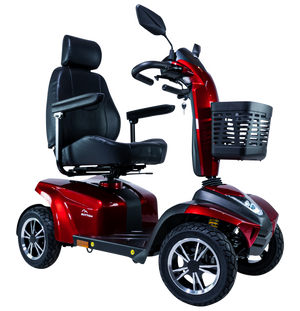

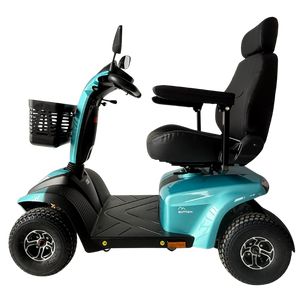

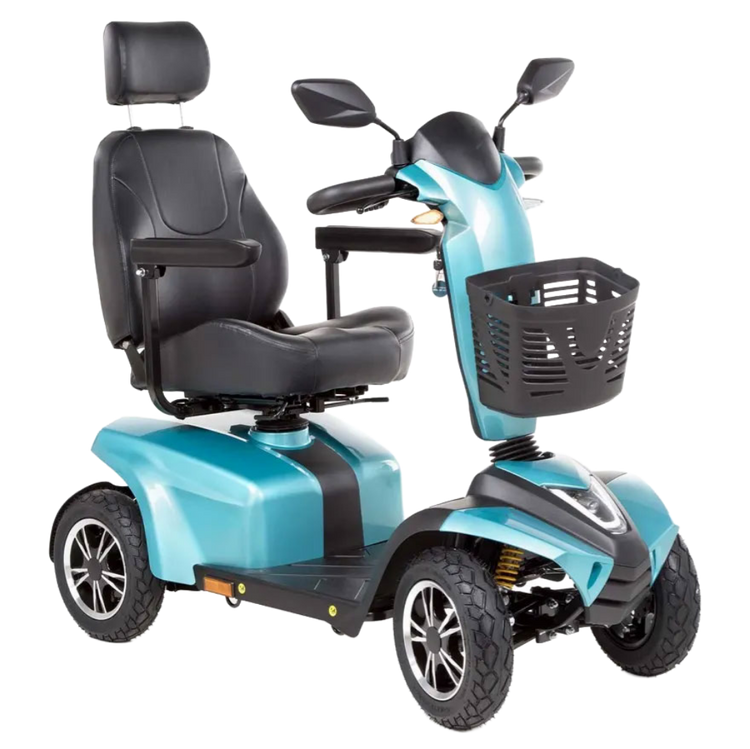

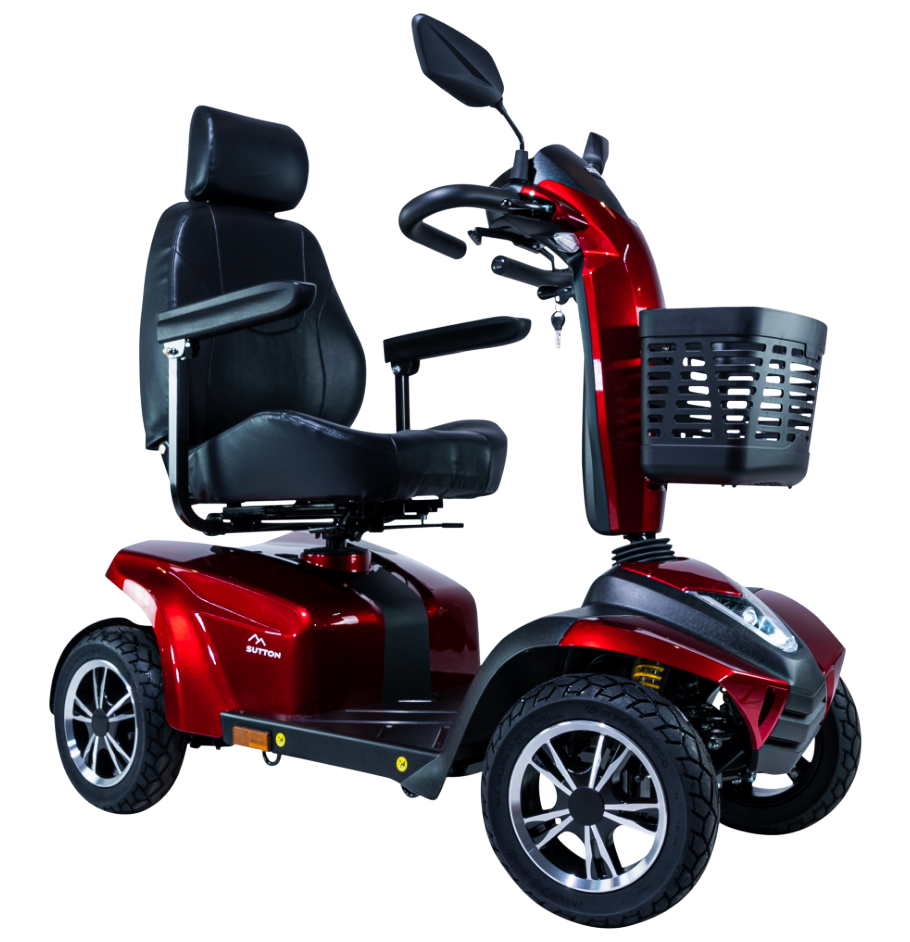

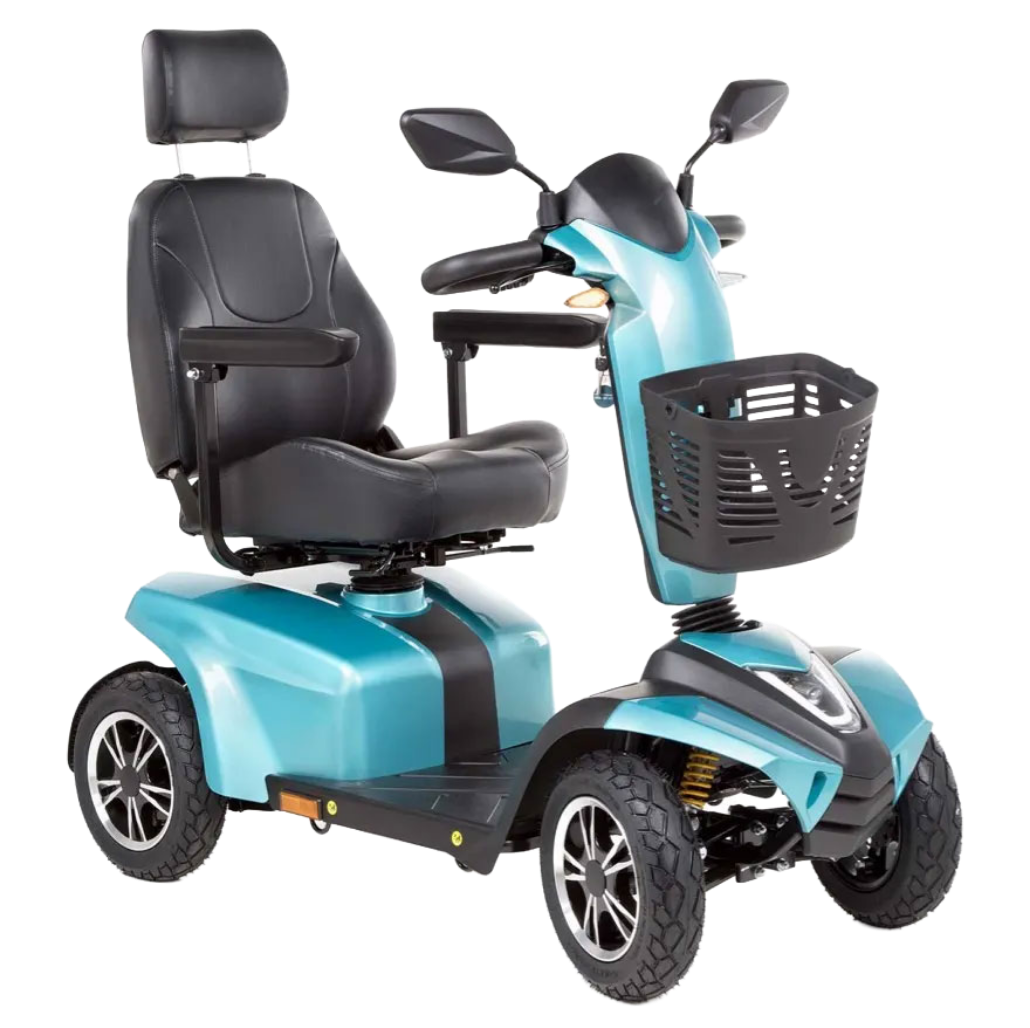

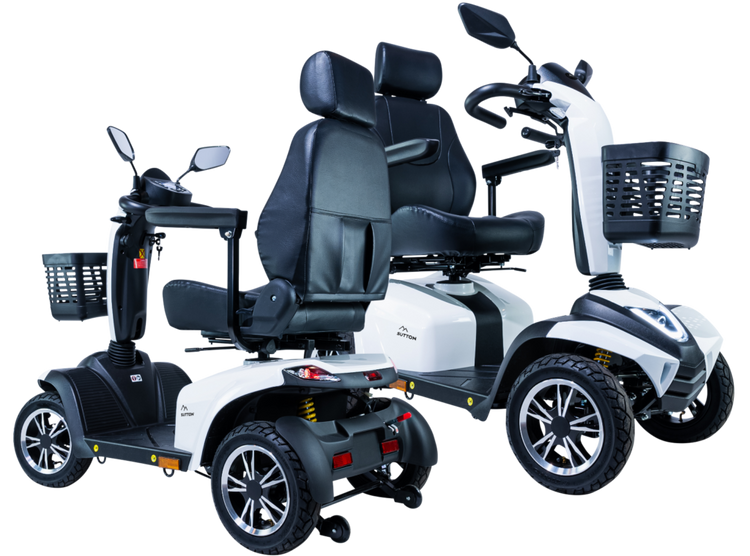

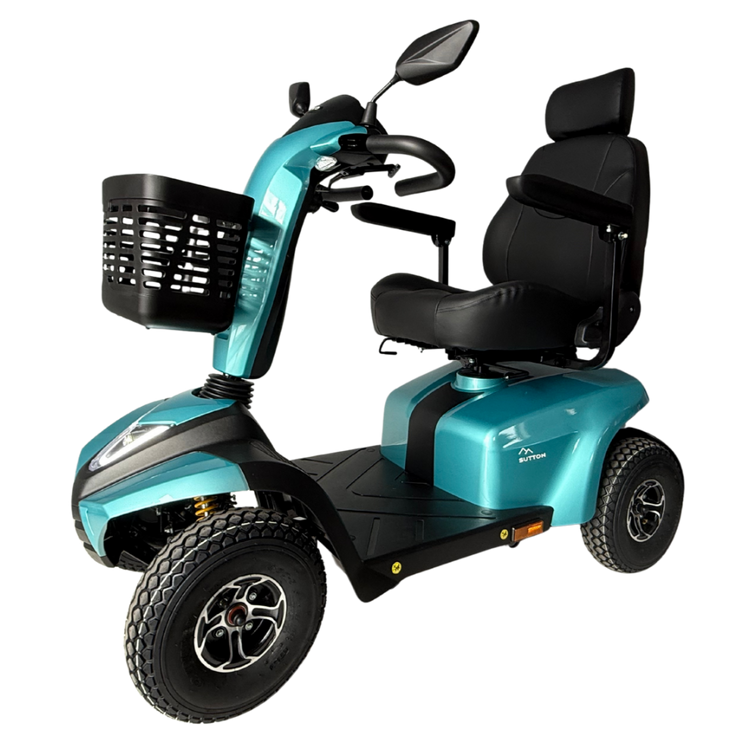

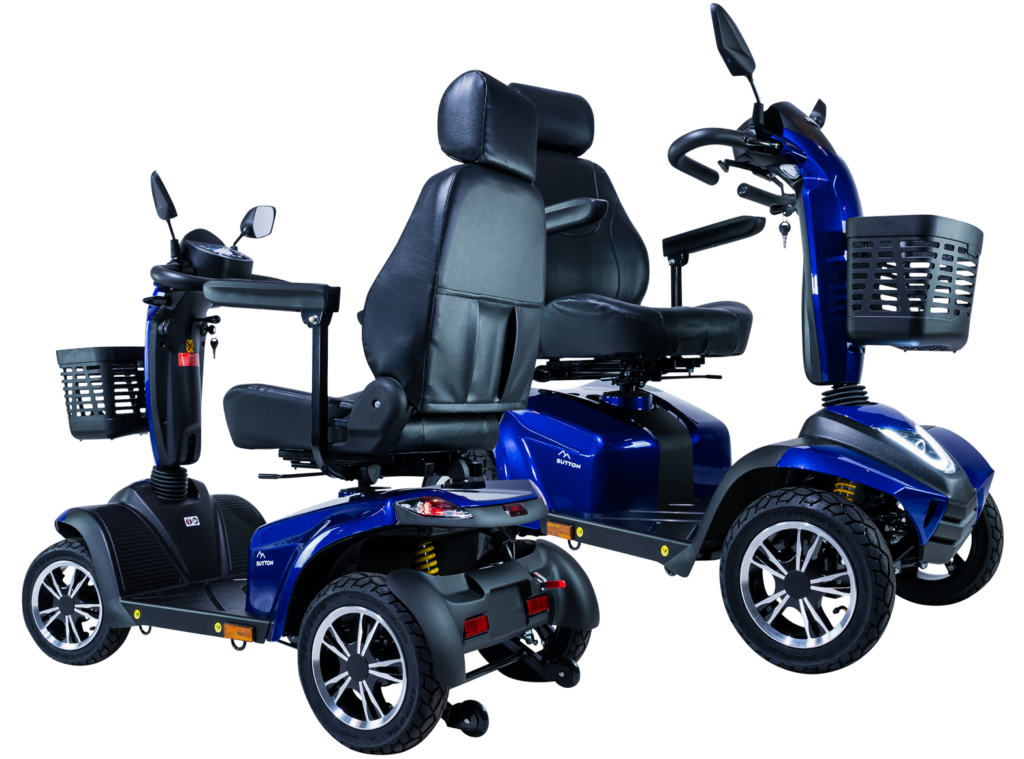

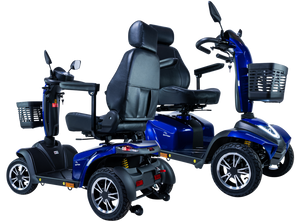

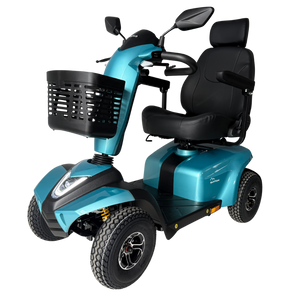

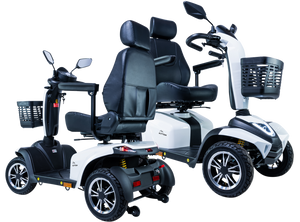

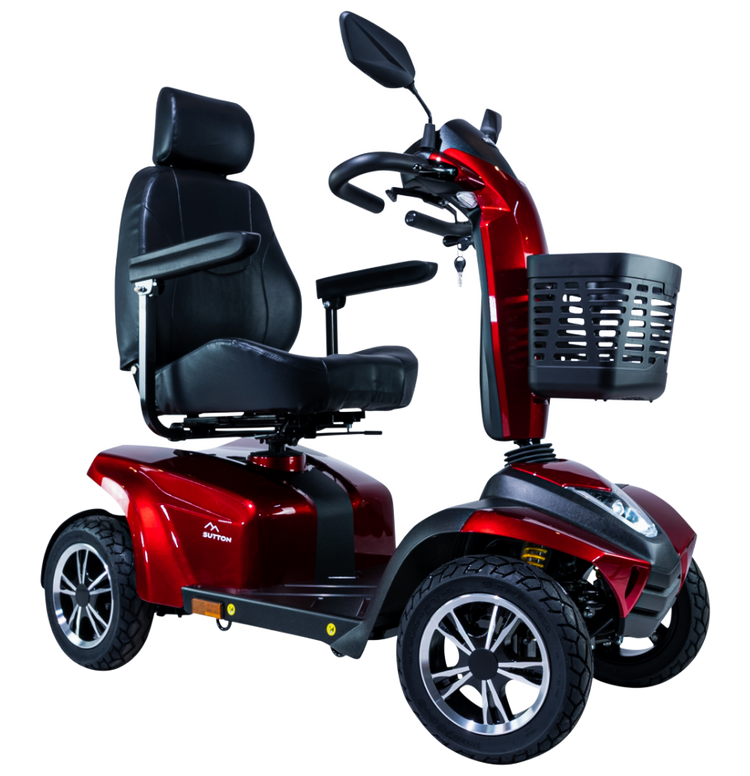

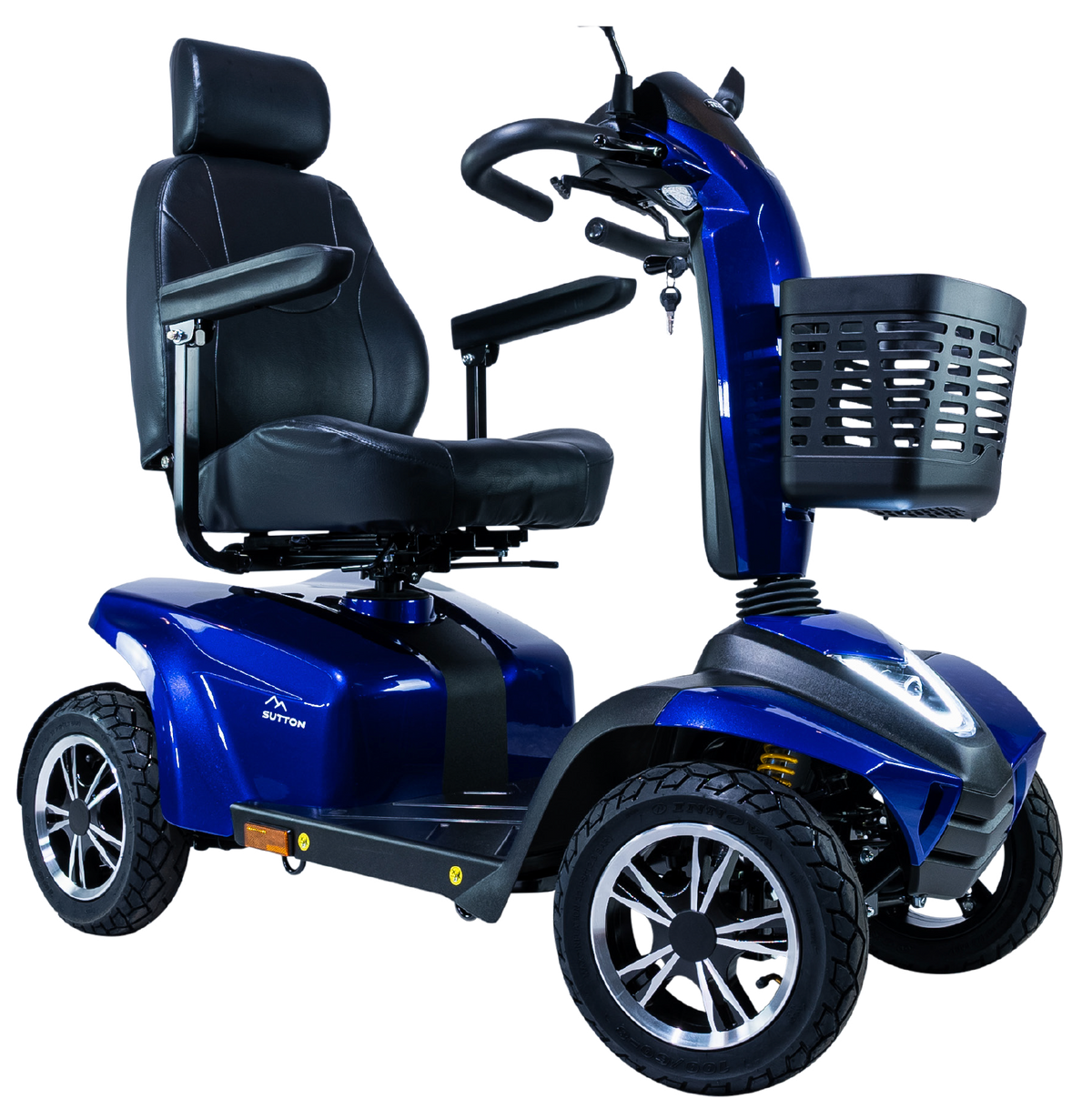

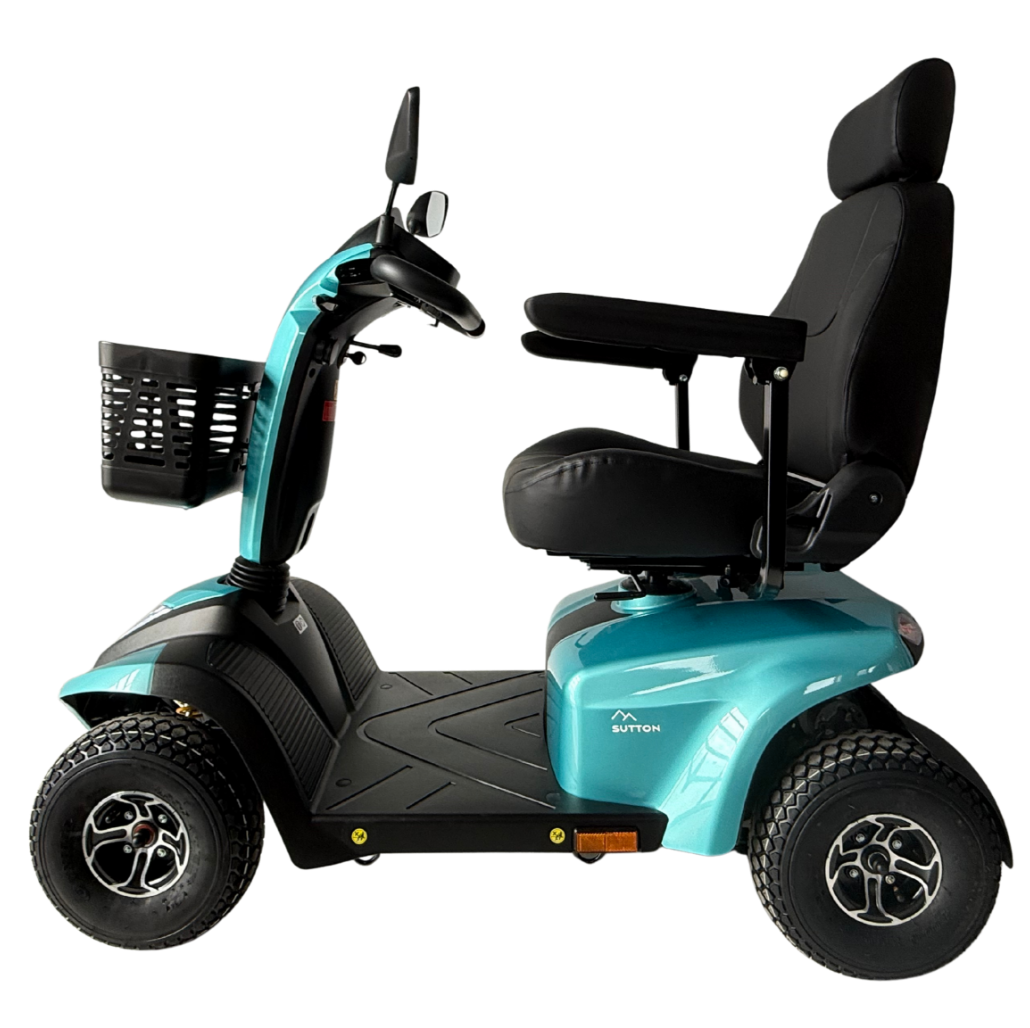

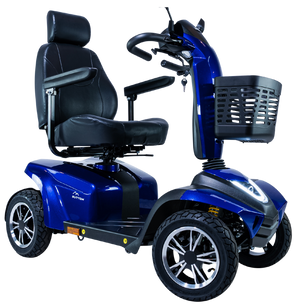

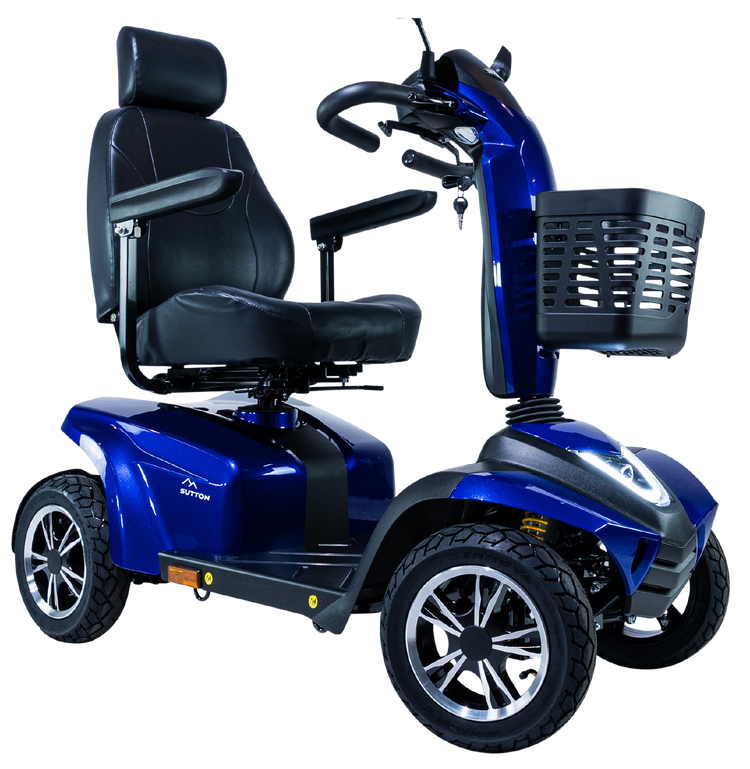

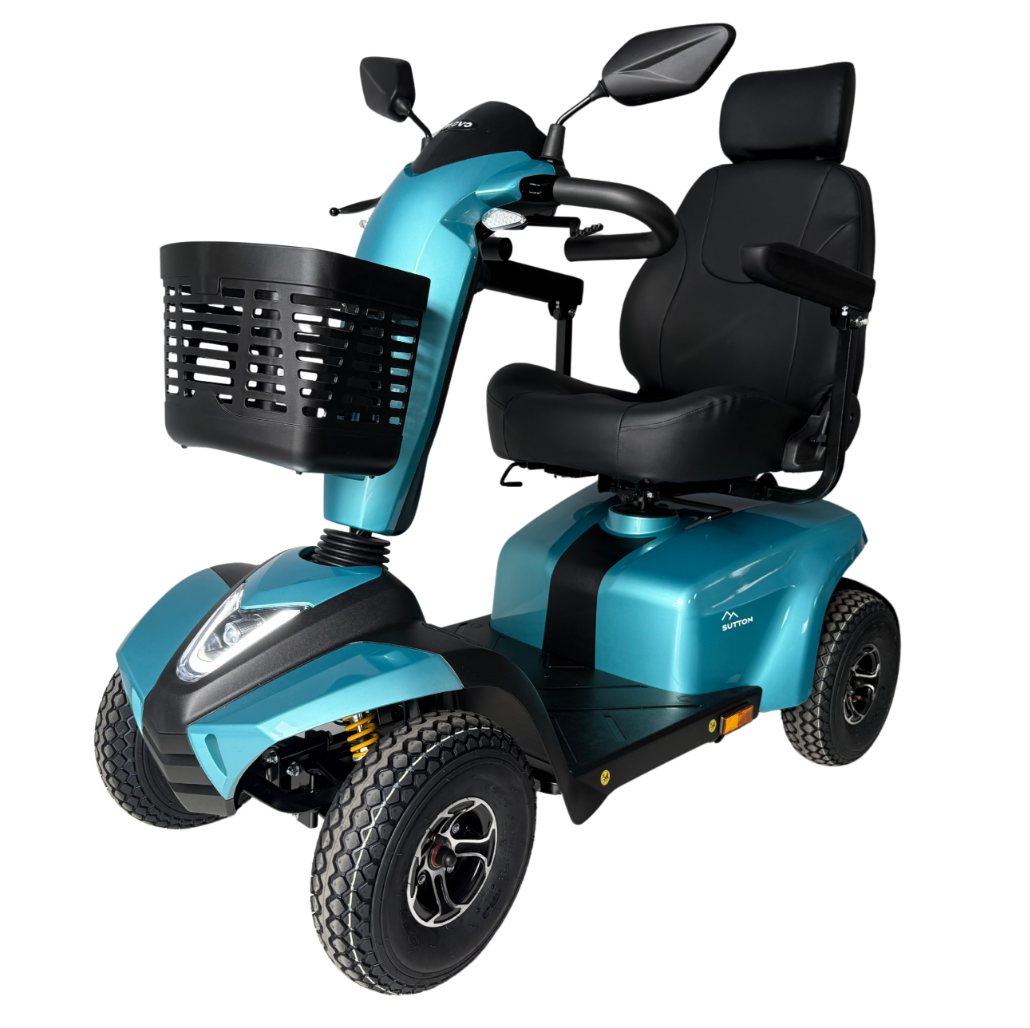

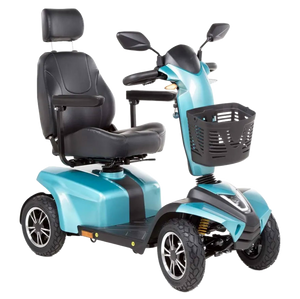

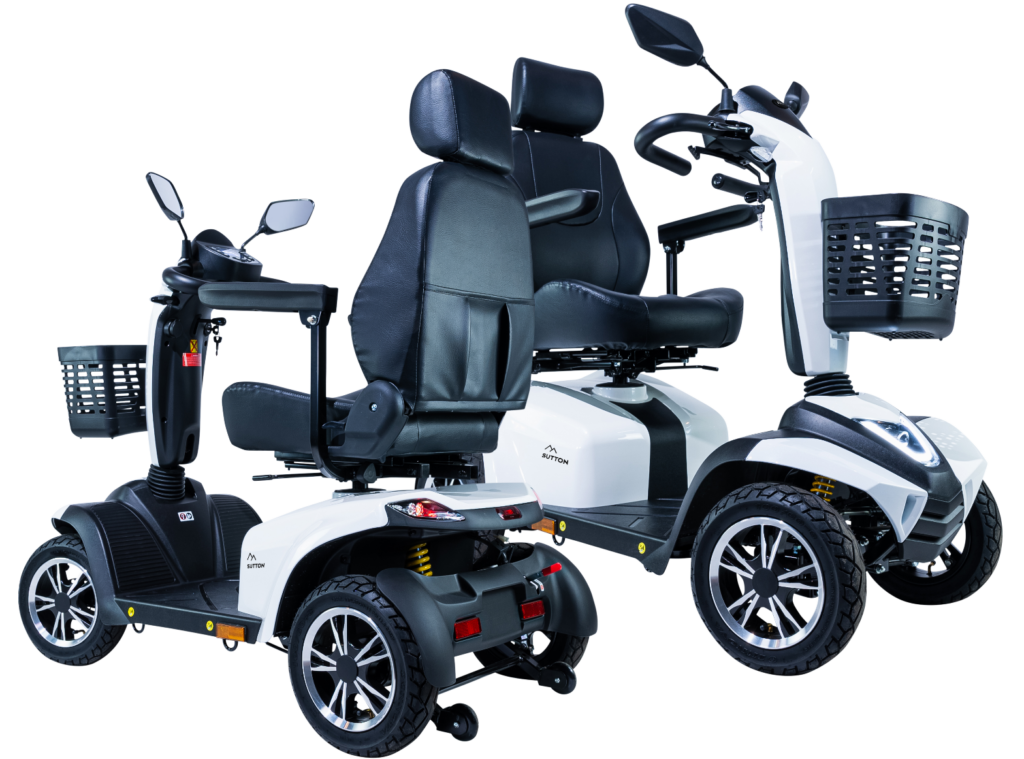

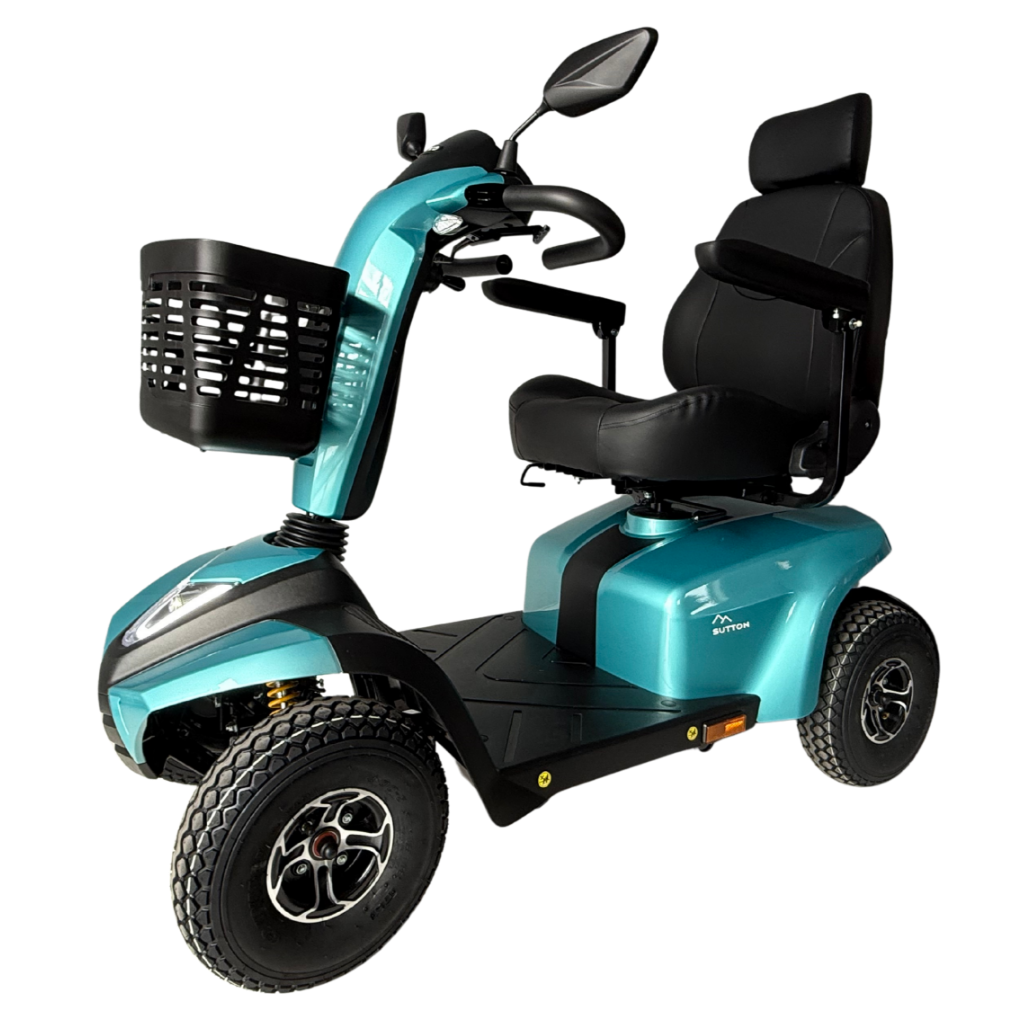

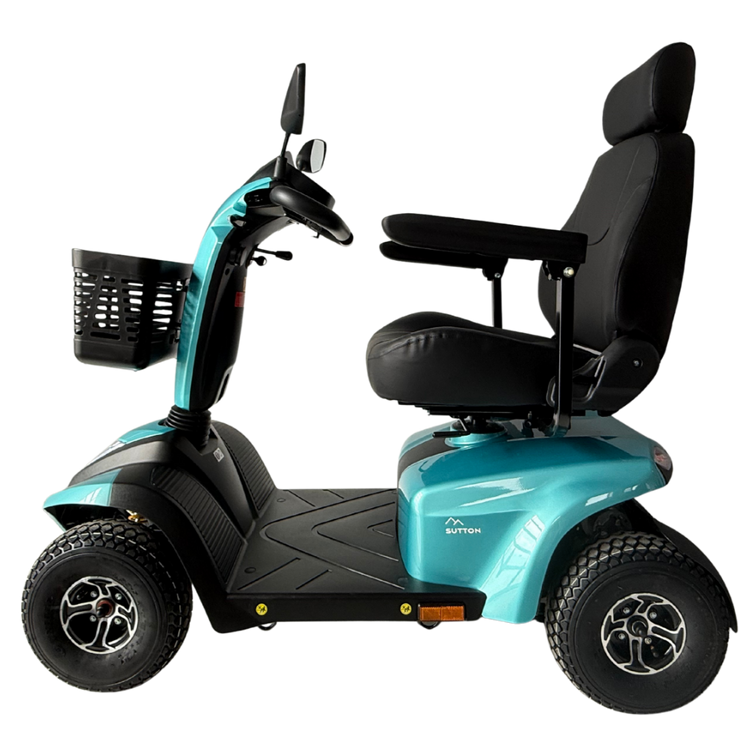

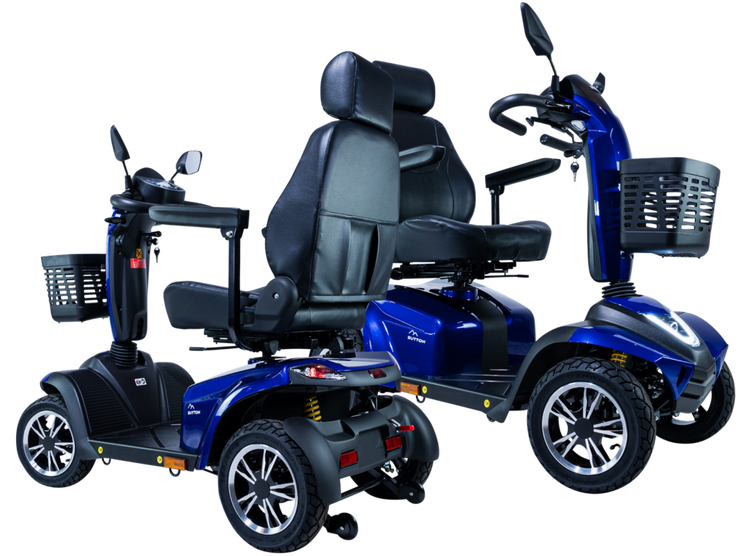

The Movo Sutton is a full-size four-wheel mobility scooter built for outdoor travel. It carries front and rear suspension, a swivel captain's seat with sliding and back-angle adjustment, and a road-legal lighting set: headlight, tail light, brake light, front and rear turn signals, hazard lights, reflectors and mirrors.

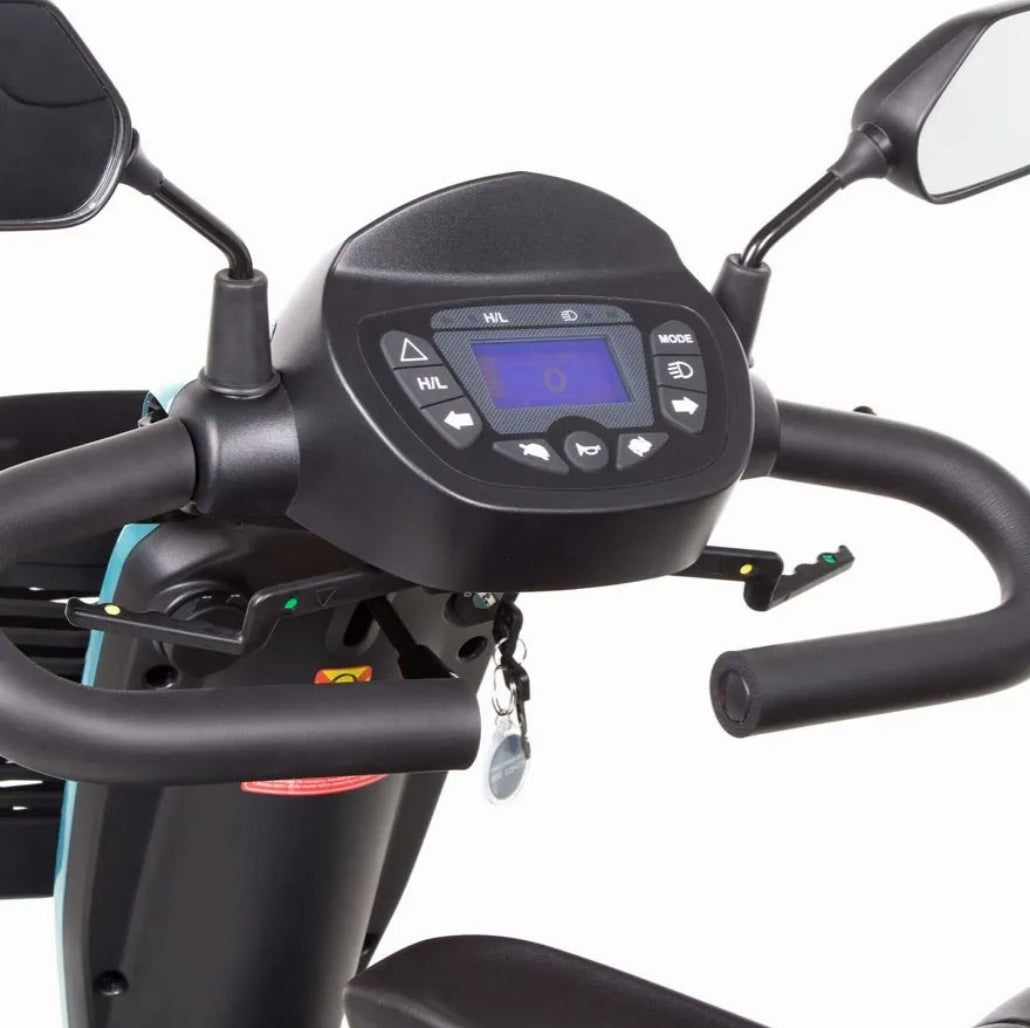

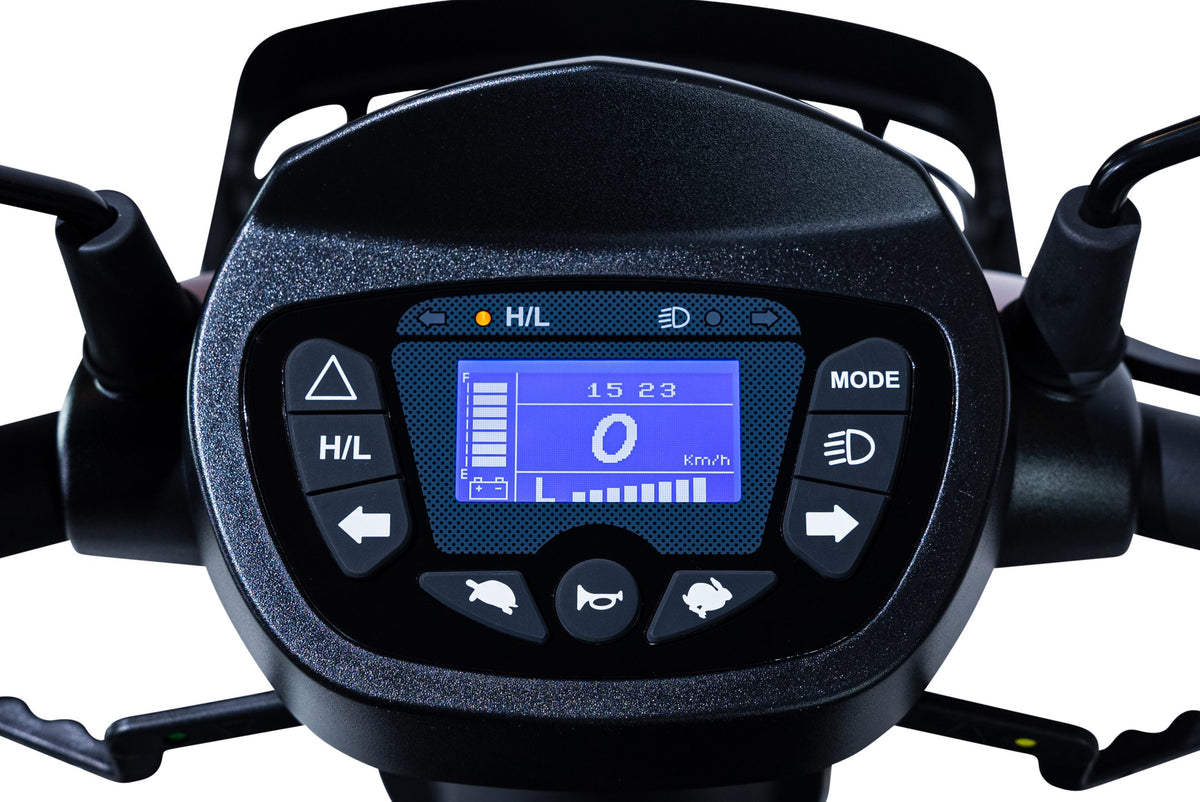

The tiller carries a digital display showing speed, battery level, odometer, trip meter, time and temperature, with a high and low speed mode and eight speed settings. Drive is by twin throttle levers, one for forward and one for reverse, and releasing them applies the brakes automatically. A separate hand brake is fitted, along with a freewheel lever so the scooter can be pushed with the motors disengaged.
A front basket and rear pocket are included for carrying. Four tie-down hooks are built into the frame for securing the scooter during transport. The scooter does not break down into pieces for car transport, so it needs a ramp and a vehicle or trailer rated for its weight.
Features

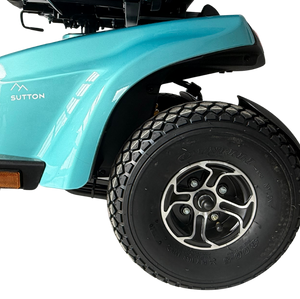

- Front and rear suspension
- Swivel captain's seat with fore-aft slide, back angle adjustment and width-adjustable armrests
- Adjustable tiller angle
- Full lighting set with turn signals, hazard lights, brake light and mirrors
- Digital display with speed, battery gauge, odometer, trip meter, clock and temperature
- High and low speed modes, with eight speed settings
- Twin throttle levers for forward and reverse, reversible by your dealer
- Hand brake and electro-mechanical brake
- Freewheel lever for pushing the scooter with the motors disengaged
- Front basket and rear pocket
- Four tie-down hooks for vehicle transport
Directions for Use
- Charge the batteries fully before first use, and after each day of use.
- Measure doorways, hallways and your storage space against the dimensions and turning radius below.
- Assembly, controls, charging and the daily check are covered in the user guide linked below.
Safety Information
- Weight capacity is 352.7 lb (160 kg). Do not exceed it. The scooter is for a single occupant. Do not carry passengers, including children.
- The maximum safe slope depends on the load. At 110 lb (50 kg) it is 10 degrees; at 200 lb (91 kg), 8 degrees; at 300 lb (136 kg), 6 degrees; at 352.7 lb (160 kg), 4 degrees. Do not drive on a slope steeper than the figure for your weight.
- Maximum obstacle and curb height is 3.9 in (10 cm). Maximum gap is 5.9 to 7.9 in (15 to 20 cm).
- Front basket capacity is 6.6 lb (3 kg).
- Do not drive in rain, on wet grass or through standing water.
- Do not place the scooter in freewheel mode on any slope, and never leave it parked with the motors disengaged.
- Do not make sharp turns, and reduce speed before turning.
- Do not remove the anti-tip wheels or fit non-approved parts.
- Turn the key off before getting on or off.
- Observe all local rules for pedestrians and road users. This scooter may only be used on routes for which it is approved under the applicable legislation.Â
- See the user guide linked below for the complete list of warnings, the pre-ride check and the electromagnetic interference information.
Care Instructions
- Clean with a damp cloth and a gentle detergent. Do not use abrasive or scouring cleaners, and do not use a hose or splash water on the scooter.
- Wipe the seat with a damp cloth and a little soap.
- Store in a dry place. For long storage, disconnect the battery terminals and recharge the batteries at least every three months.
- Storage range is -30 to 50 C, at 25 to 85 percent humidity.
- Daily, weekly and monthly check lists are in the user guide. All maintenance and repair should be done by an authorized dealer.
Specifications
| Brand | Movo Evolution |
| Model | Sutton |
| Overall length | 55.1 in (140 cm) |
| Overall width | 26.8 in (68 cm) |
| Overall height | 52.2 in (132.5 cm) |
| Weight with batteries | 313 lb (142 kg) |
| Battery weight | 110 lb (50 kg) for the pair |
| Weight capacity | 352.7 lb (160 kg) |
| Maximum speed | 16 km/h |
| Travel range | Up to 50 km per charge, depending on temperature, surface, tire pressure, rider weight, inclines and use of lights |
| Maximum slope | 10 degrees at 110 lb (50 kg), reducing to 4 degrees at full load. See Safety Information. |
| Curb and obstacle height | 3.9 in (10 cm) |
| Ground clearance | 3.5 in (9 cm) |
| Turning radius | 65.4 in (166 cm) |
| Motor | 850 W, 5000 rpm, 24 V, with motor brake |
| Charger | 8 A off-board |
| Wheels | 13 in (33 cm) front and rear |
| Suspension | Front and rear |
| Brakes | Hand brake and electro-mechanical |
| Seat | Swivel captain's seat with sliding mechanism and back angle adjustment |
| Seat width | 20.3 in (51.5 cm) |
| Tire pressure | 35 psi |
| Estimated service life | 5 years with correct use and maintenance |
| Warranty | Frame 2 years limited; controller, electronic components and charger 1 year limited. Tires, armrests, seat cushions, fuses, bulbs, linings, batteries and consumables excluded. |
Resources
Package Includes
- Movo Sutton mobility scooter with two 12 V batteries fitted
- Off-board battery charger
- Front basket
- Rear-view mirrors
- User guide
If you are unsure whether this scooter suits your needs, your route or your storage and transport situation, speak with your occupational therapist or other qualified healthcare professional before purchasing.
